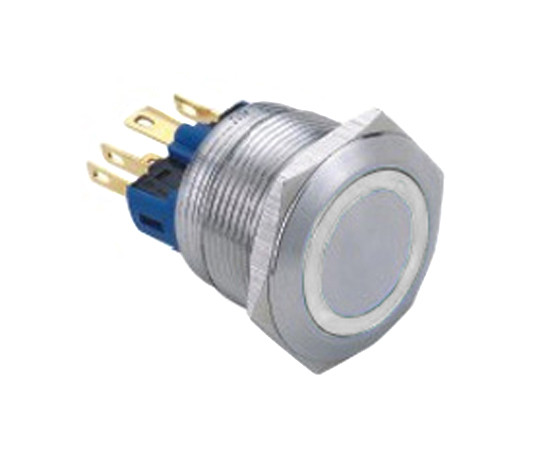

Vandal proof push button switch; W22F11EW12/S

Symbol Micros: PRZ W22F11EW12/S

110732

PRZ W22F11EW12/S

Contractor Symbol:

Case : Rys.W22F11EW12/S

Datasheet

Technical drawing Add to favourites

22mm; momentary; 1NO1NC; stainless steel; pin terminals; front shape-flat; illuminated LED 12V; ring; white; 5A; IP67; electrical life: 40.000h

Parameters

Backlight colour:	White
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Mounting hole diameter:	22mm
Contacts configuration:	N/A
Leads:	For soldering

All parameters

Manufacturer:: HAN Manufacturer part number:   Case style: Rys.W22F11EW12/S

In stock:

25 pcs.

Quantity of pcs.	1+	4+	16+	64+	128+
Net price (EUR)	6,7227	6,1038	5,7978	5,6459	5,6022

Add to comparison tool Add inquiry (RFQ)

Packaging:
64 Quantity (multiple: 1)

- +

Manufacturer:: YUMO Manufacturer part number:   Case style: Rys.W22F11EW12/S

In stock:

80 pcs.

Quantity of pcs.	1+	5+	20+	40+	100+
Net price (EUR)	6,7227	6,0301	5,7541	5,6735	5,6022

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	White
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Mounting hole diameter:	22mm
Contacts configuration:	N/A
Leads:	For soldering
Illumination:	Edge
Illimination voltage:	12V
Manufacturer:	N/A
Switch operation:	Momentary
Button marking:	N/A
Type of switch:	Vandal-resistant
