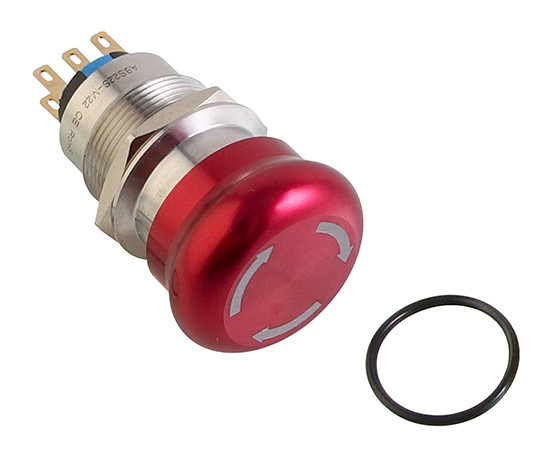

Vandal proof push button switch; W22M22R/S

Symbol Micros: PRZ W22M22R/S

114305

PRZ W22M22R/S

Contractor Symbol:

Case : Rys.W22M22R/S

Datasheet

Technical drawing Add to favourites

22mm; momentary; 2NO2NC; stainless steel; pin terminals; front shape-mushroom; return by rotating; 5A; 250VAC; IP65; IK10; electrical life: 50.000 cycles

Parameters

Contacts rating:	5A/250VAC
Backlight colour:	N/A
Switching method:	2NO2NC
Button shape:	Mushroom-shaped
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	22mm

All parameters

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W22M22R/S

In stock:

6 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	9,0960	8,5165	8,1537	8,0241	7,9087

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: JSP Manufacturer part number:   Case style: Rys.W22M22R/S

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	20+	40+
Net price (EUR)	9,0960	8,5165	8,1537	8,0241	7,9322

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	5A/250VAC
Backlight colour:	N/A
Switching method:	2NO2NC
Button shape:	Mushroom-shaped
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	22mm
Leads:	For soldering
Illumination:	N/A
Illimination voltage:	N/A
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
