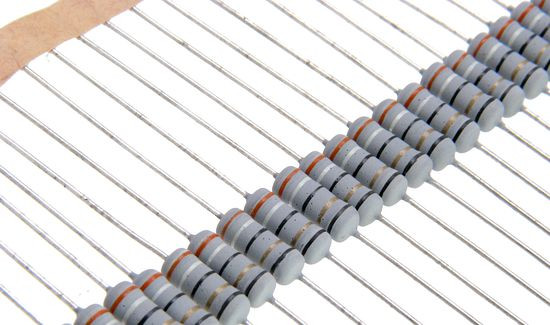

Wire wound resistor; 0.1R

Symbol Micros: R dr10/0000.10j

21813

R dr10/0000.10j

Contractor Symbol:

Case : Rys.REZDR1W

Datasheet

Technical drawing Add to favourites

wire wound resistor; 0.1R; 1W; 5%; 0309; body dimensions: 3,2x9mm; leads dimensions: 0,5x25mm

Parameters

Body dimensions:	3,2x9mm
Leads dimensions:	0,5x25mm
Mounting:	THT
Power:	1W
Resistance:	0,1 Ohm
Temperature coefficient:	300ppm/°C
Tolerance [%]:	5%

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-08-30

Quantity of pcs.: 4000

• Parameters

Body dimensions:	3,2x9mm
Leads dimensions:	0,5x25mm
Mounting:	THT
Power:	1W
Resistance:	0,1 Ohm
Temperature coefficient:	300ppm/°C
Tolerance [%]:	5%
