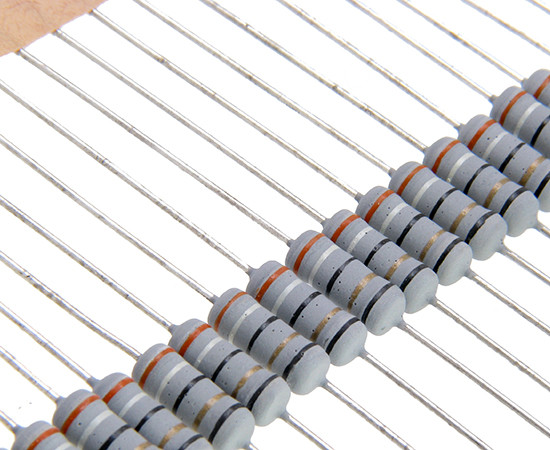

Wire wound resistor; 10R

Symbol Micros: R dr10/0010.00jm

92980

R dr10/0010.00jm

Contractor Symbol:

Case : Rys.REZDR1WS

Datasheet

Technical drawing Add to favourites

wire wound resistor; 10R; 1W; 5%; 0309; body dimensions: 3,2x9mm; leads dimensions: 0,5x25mm

Parameters

Resistance:	10 Ohm
Power:	1W
Tolerance:	5%
Body dimensions:	3,2x9mm
Leads dimensions:	0,5x25mm
Temperature coefficient:	300ppm/°C
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-02-05

Quantity of pcs.: 20000

• Parameters

Resistance:	10 Ohm
Power:	1W
Tolerance:	5%
Body dimensions:	3,2x9mm
Leads dimensions:	0,5x25mm
Temperature coefficient:	300ppm/°C
Mounting:	THT
