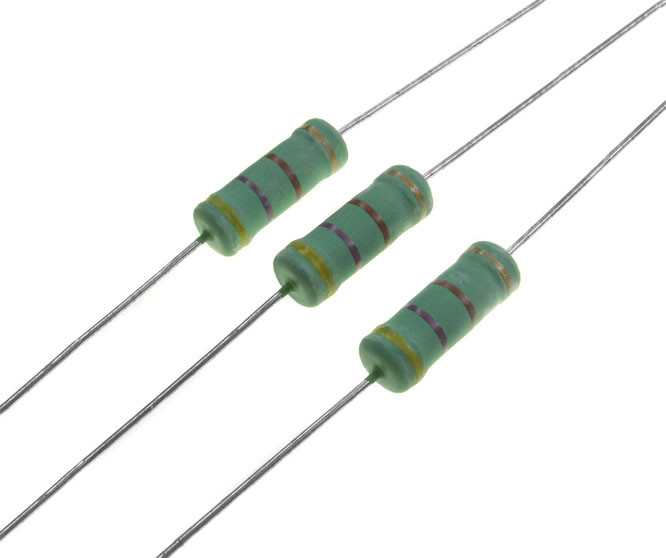

Wire wound resistor; 33R

Symbol Micros: R dr50/0033.00j

22012

R dr50/0033.00j

Contractor Symbol:

Case : Rys.REZDR5W

Datasheet

Technical drawing Add to favourites

wire wound resistor; 33R; 5%; 5W; 0617; body dimensions: 6x17mm; leads dimensions: 0,7x25mm

Parameters

Body dimensions:	6x17mm
Leads dimensions:	0,7x25mm
Mounting:	THT
Power:	5W
Resistance:	33 Ohm
Temperature coefficient:	300ppm/°C
Tolerance [%]:	5%

All parameters

Manufacturer:: Vishay Manufacturer part number: AC05000003309JAC00 Case style: Rys.REZDR5W

External warehouse:

7000 pcs.

Quantity of pcs.	500+ (Please wait for the order confirmation)
Net price (EUR)	0,2172

Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Body dimensions:	6x17mm
Leads dimensions:	0,7x25mm
Mounting:	THT
Power:	5W
Resistance:	33 Ohm
Temperature coefficient:	300ppm/°C
Tolerance [%]:	5%
