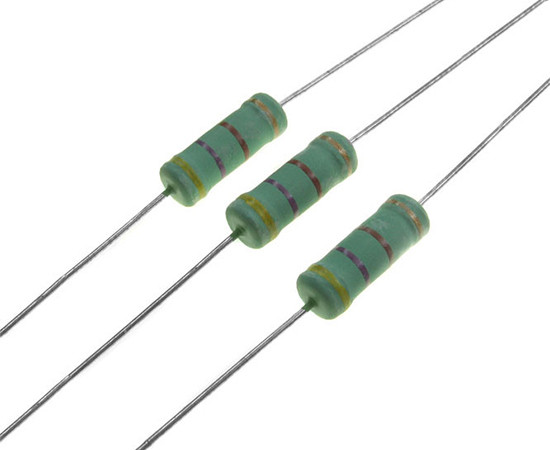

Wire wound resistor; 56R

Symbol Micros: R dr80/0056.00j

525817

R dr80/0056.00j

Contractor Symbol:

Case : Rys.REZDR8W

Datasheet

Add to favourites

wire wound resistor; 56R; 5%; 8W; 0830; body dimensions: 8.5x30mm; leads dimensions: 0,8x38mm

Parameters

Resistance:	56 Ohm
Power:	8W
Tolerance:	5%
Body dimensions:	8.5x30mm
Leads dimensions:	0,8x38mm
Temperature coefficient:	300ppm/°C
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	56 Ohm
Power:	8W
Tolerance:	5%
Body dimensions:	8.5x30mm
Leads dimensions:	0,8x38mm
Temperature coefficient:	300ppm/°C
Mounting:	THT
