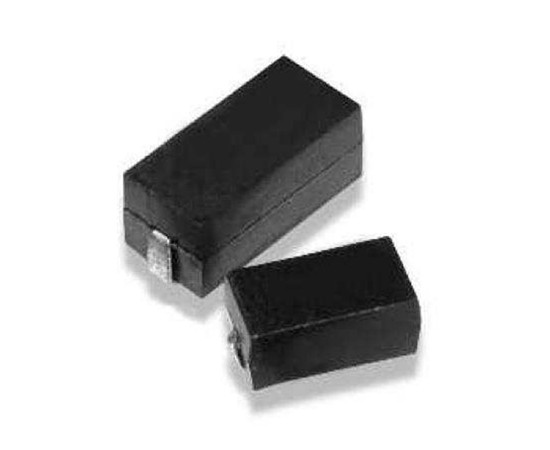

SMW5120RFT Resistor TE Connectivity

Symbol Micros: R SMW5120RFT

534606

R SMW5120RFT

Contractor Symbol:

Case : Rys.SMW5328

Datasheet

Add to favourites

Resistor; 120R; 500V; 5W; 1%; 5329; 200PPM; dimensions: 13,5x7,3x6,8mm; operating temperature: -55°C~200°C

Parameters

Manufacturer:	TE Connectivity
Operating temperature (range):	-55°C ~ 200°C
Operating voltage:	500V
Power:	5W
Resistance:	120 Ohm
Tolerance [%]:	1%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TE Connectivity
Operating temperature (range):	-55°C ~ 200°C
Operating voltage:	500V
Power:	5W
Resistance:	120 Ohm
Tolerance [%]:	1%
