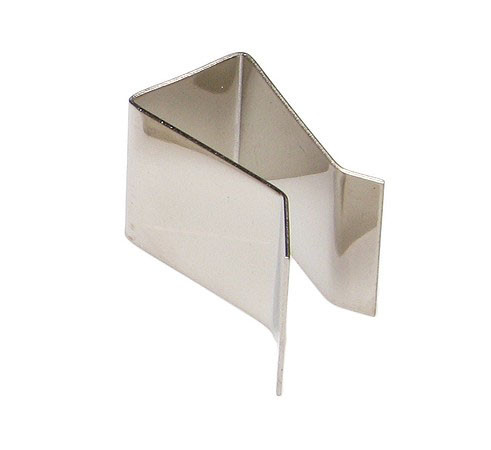

THFA4K Fischer Clamp

Symbol Micros: RAD CLAMP04

28603

RAD CLAMP04

Contractor Symbol:

Case : Rys.THFA4

Datasheet

Technical drawing Add to favourites

Transistor clamp; TO-247/TO-218; plate thickness: 6,5mm; holding force: 59N; spring steel; corrosion protected

Parameters

Width [mm]:	15mm
Lenght:	13,2mm
Height [mm]:	26,5mm
Accessories type:	Clips
Manufacturer:	FISCHER

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Width [mm]:	15mm
Lenght:	13,2mm
Height [mm]:	26,5mm
Accessories type:	Clips
Manufacturer:	FISCHER
