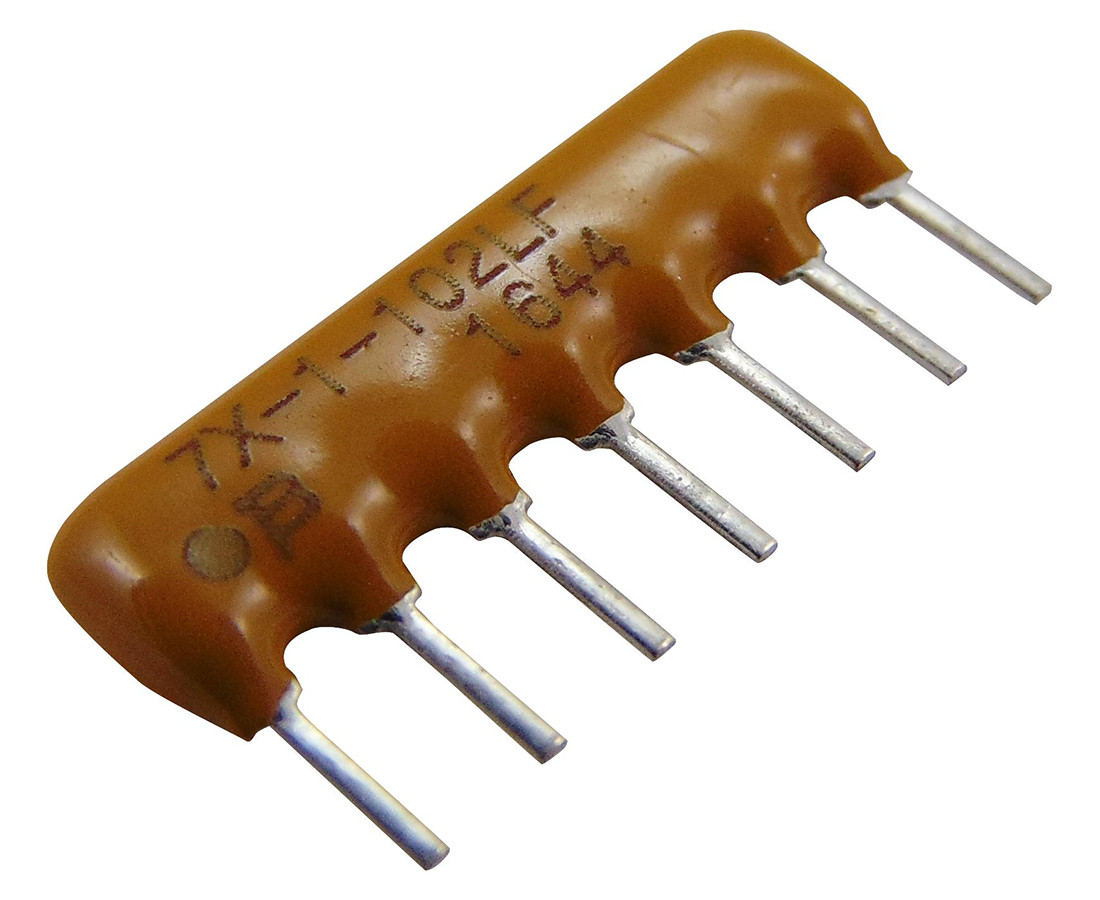

Resistor network; 22kR

Symbol Micros: RDS07/06k022.0g1

313478

RDS07/06k022.0g1

Contractor Symbol:

Case : Rys.RNLA

Datasheet

Technical drawing Add to favourites

Resistor network; SIL; 7 pins; 6 resistors; 22kR; 2%; 0.125W; operating temperature: -55°C~155°C; max. working voltage: 100V

Parameters

Resistance:	22 kOhm
Power:	125mW
Manufacturer:	N/A
Max. operating voltage:	100V
Number of resistors:	6
Temperature coefficient:	0
Mounting:	THT

All parameters

Manufacturer:: ROYAL OHM Manufacturer part number: RNLA07G0223B0E RoHS Case style: Rys.RNLA Datasheet

In stock:

50 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2680	0,1474	0,0976	0,0813	0,0764

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Resistance:	22 kOhm
Power:	125mW
Manufacturer:	N/A
Max. operating voltage:	100V
Number of resistors:	6
Temperature coefficient:	0
Mounting:	THT
Tolerance [%]:	2%
Operating temperature (range):	-55°C ~ 125°C
