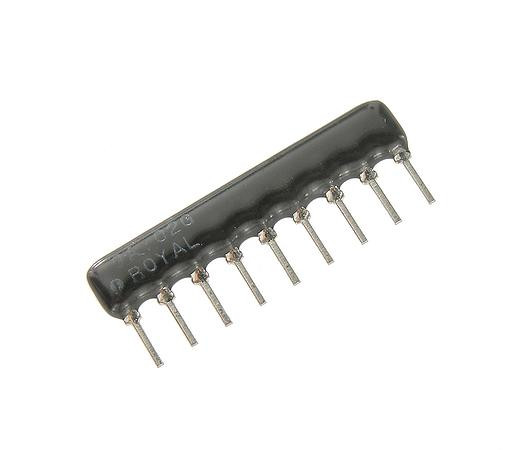

Resistor network; 100kR

Symbol Micros: RDS09/08k100.0g1

7590

RDS09/08k100.0g1

Contractor Symbol:

Case : Rys23.1e

Datasheet

Technical drawing Add to favourites

Resistor network; SIL; 9 pins; 8 resistors; 100kR; 2%; 1W; 100ppm/°C; operating temperature: -55°C~155°C; max. working voltage: 100V

Parameters

Resistance:	100 kOhm
Power:	1W
Number of resistors:	8
Temperature coefficient:	100ppm/°C
Manufacturer:	N/A
Max. operating voltage:	100V
Mounting:	THT

All parameters

Manufacturer:: Thunder Components Manufacturer part number: RAA09104GFN RoHS Case style: Rys23.1e

In stock:

905 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1714	0,0685	0,0399	0,0333	0,0312

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/1000 Quantity (multiple: 1)

- +

• Parameters

Resistance:	100 kOhm
Power:	1W
Number of resistors:	8
Temperature coefficient:	100ppm/°C
Manufacturer:	N/A
Max. operating voltage:	100V
Mounting:	THT
Tolerance:	2%
Operating temperature (range):	-55°C ~ 125°C
