AN001 (replacement for: GPS-ANT042)
Symbol Micros:
RF AN001
Case : Rys.AN001

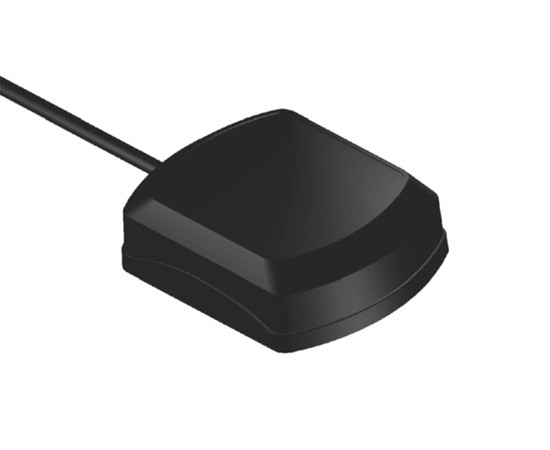

GPS Antenna, 1575.42MHz, gain 2.0dBi, BW 5MHz, dimensions 49.4×39.3×14.9mm SMA straight male connector, adhesive mount, RG174 3m cable
Parameters
| Dimensions: | 49,4x39,3x14,9mm |
| Frequency range: | 1575,42MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GPS |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Module |
| Mounting: | Adhesive |
Manufacturer:: import
Manufacturer part number: AN001 RoHS
Case style: Rys.AN001
In stock:
50 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 50+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 4,0166 | 3,5824 | 3,3228 | 3,1552 | 3,0892 |
| Dimensions: | 49,4x39,3x14,9mm |
| Frequency range: | 1575,42MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GPS |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Module |
| Mounting: | Adhesive |
| Type of connector: | Straight male SMA |
| Cable type: | RG174 |
| Cable length: | 3m |
| Polarisation: | RHCP |
| Impedance: | 50Ohm |
Detailed description
Product type: GPS Antenna
Frequency: 1575.42MHz
Gain: 2.0dBi
Bandwidth: 5MHz
External dimensions: 49.4×39.3×14.9mm
Connector type: SMA male straight
Mounting: adhesive
Cable: RG174 3m
Polarization: RHCP
V.S.W.R: <1.5
Impedance: 50Ω
Operating temperature: -40÷85°C
