AN011L
Symbol Micros:
RF AN011L

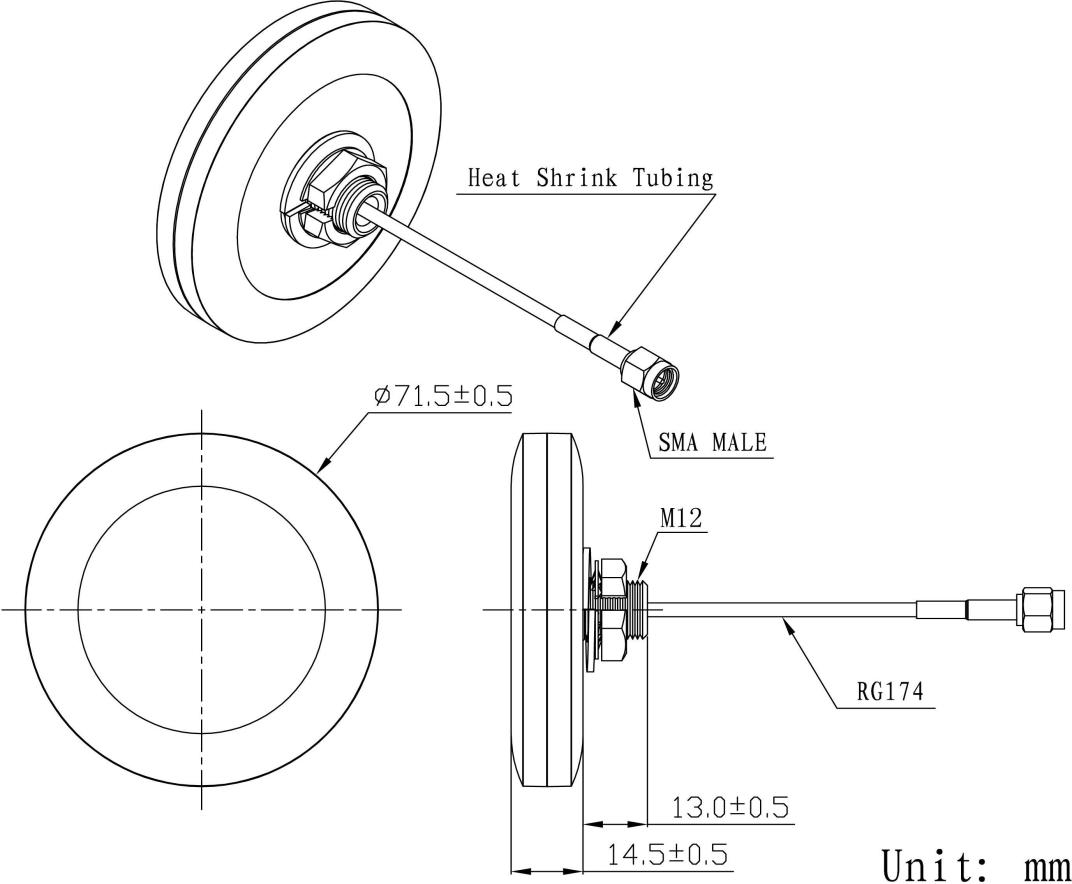

Case : Rys.AN011L

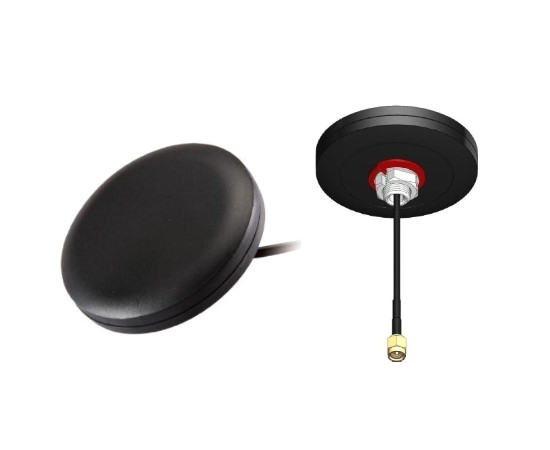

GSM Antenna, 824÷960/1710÷2170MHz, gain 2.0dBi, dimensions Ω×H 71.5×14.5mm SMA straight male connector, screw mount, RG174 3m cable
Parameters
| Dimensions: | 71,5x14,5mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Circle |
| Mounting: | Screw |
| Dimensions: | 71,5x14,5mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Circle |
| Mounting: | Screw |
| Type of connector: | Straight male SMA |
| Cable type: | RG174 |
| Cable length: | 3m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena GSM
Częstotliwość: 824÷960/1710÷2170MHz
Zysk energetyczny: 2.0dBi
Wymiary zewnętrzne: Φ×H 71.5×14.5mm
Typ złącza: SMA męskie proste
Montaż: przykręcany
Przewód: RG174 3m
Polaryzacja: liniowa
V.S.W.R: <2.5
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
