AN015KZW-FME (replacement for: GSM-ANT015KZW-FME)

Symbol Micros: RF AN015KZW-FME

214177

RF AN015KZW-FME

Contractor Symbol:

Case : Rys.AN015KZW-FME

Datasheet

Technical drawing Add to favourites

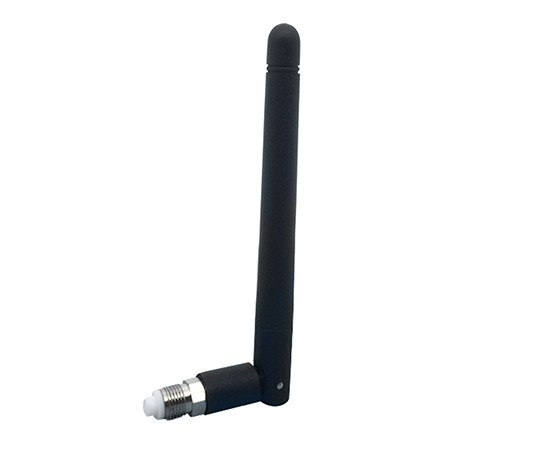

GSM Antenna, 824÷960/1710÷1990MHz, gain 3.0dBi, dimensions L×Φ117×10mm FME rotating connector

Product description

Parameters

Dimensions:	117x10mm
Frequency range:	824~960/1710~1990MHz
Peak gain:	3,0dBi
Antenna type:	GSM
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Pipe
Mounting:	Screw

All parameters

Manufacturer:: import Manufacturer part number: AN015KZW-FME RoHS Case style: Rys.AN015KZW-FME

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	20+	100+
Net price (EUR)	2,5646	2,1396	1,8940	1,8137	1,7098

Add to comparison tool Add inquiry (RFQ)

Packaging:
10/20 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	117x10mm
Frequency range:	824~960/1710~1990MHz
Peak gain:	3,0dBi
Antenna type:	GSM
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Pipe
Mounting:	Screw
Type of connector:	Rotated FME
Polarisation:	Linear
Impedance:	50Ohm

Detailed description

Product type: GSM Antenna

Frequency: 824÷960/1710÷1990MHz
Gain: 3.0dBi
External dimensions: L×Φ 117×10mm
Connector type: FME swivel
Polarization: linear
V.S.W.R: <2.5
Impedance: 50Ω
Operating temperature: -40÷85°C
