AN015KZW-SMA (replacement for: GSM-ANT015KZW-SMA)

Symbol Micros: RF AN015KZW-SMA

214178

RF AN015KZW-SMA

Contractor Symbol:

Case : Rys.AN015KZW-SMA

Datasheet

Technical drawing Add to favourites

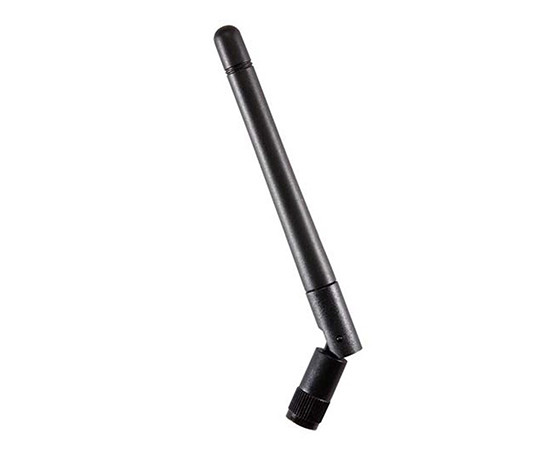

GSM Antenna, 824÷960/1710÷1990MHz, gain 3.0dBi, dimensions L×Φ117×10mm SMA rotating male connector

Product description

Parameters

Dimensions:	117x10mm
Frequency range:	824~960/1710~1990MHz
Peak gain:	3,0dBi
Antenna type:	GSM
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Pipe
Mounting:	Screw

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters
• Description

Dimensions:	117x10mm
Frequency range:	824~960/1710~1990MHz
Peak gain:	3,0dBi
Antenna type:	GSM
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Pipe
Mounting:	Screw
Type of connector:	Rotated male SMA
Polarisation:	Linear
Impedance:	50Ohm

Detailed description

Product type: GSM Antenna

Frequency: 824÷960/1710÷1990MHz
Gain: 3.0dBi
External dimensions: L×Φ 117×10mm
Connector type: SMA male swivel
Polarization: linear
V.S.W.R: <2.5
Impedance: 50Ω
Operating temperature: -40÷85°C
