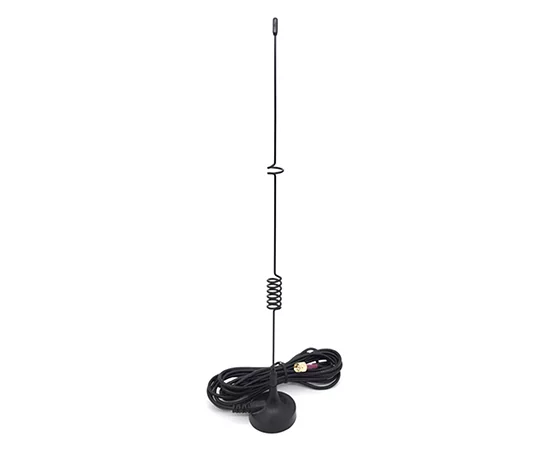

AN024 (replacement for: GSM-ANT024)
Symbol Micros:
RF AN024
Case : Rys.AN024
GSM Antenna, 824÷960/1710÷2170MHz, gain 5.0dBi, dimensions L×Φ311×40mm SMA straight male connector, magnet mount, RG58 3m cable
Parameters
| Dimensions: | 311x40mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 5,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Rod |
| Type of connector: | Straight male SMA |
Manufacturer:: imported
Manufacturer part number: AN024 RoHS
Case style: Rys.AN024
In stock:
100 pcs.
| Quantity of pcs. | 1+ | 5+ | 20+ | 100+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 3,8203 | 3,2832 | 3,0748 | 2,9636 | 2,9382 |
| Dimensions: | 311x40mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 5,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Rod |
| Type of connector: | Straight male SMA |
| Mounting: | Magnet |
| Cable type: | RG174 |
| Polarisation: | Linear |
| Cable length: | 3m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena GSM
Częstotliwość: 824÷960/1710÷2170MHz
Zysk energetyczny: 5.0dBi
Wymiary zewnętrzne: L×Φ 311×40mm
Typ złącza: SMA męskie proste
Montaż: magnes
Przewód: RG174 3m
Polaryzacja: liniowa
V.S.W.R: <2.0
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
