AN402 (replacement for: GSM-ANT402)
Symbol Micros:
RF AN402
Case : Rys.AN402

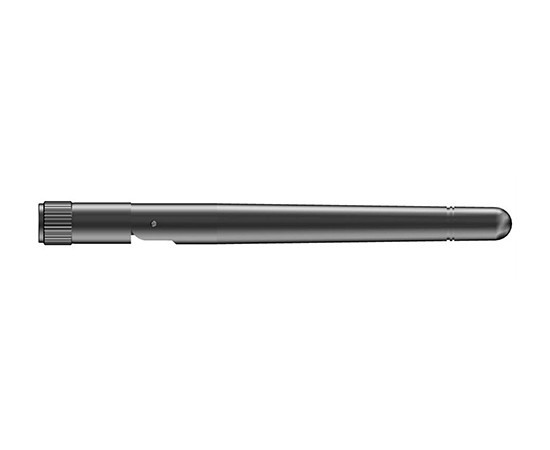

GSM Antenna, 824÷960/1710÷2170MHz, gain 2.0dBi, dimensions L×Φ109×10mm SMA rotating male connector
Parameters
| Dimensions: | 109x10mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Pipe |
| Type of connector: | Rotated male SMA |
Manufacturer:: import
Manufacturer part number: AN402 RoHS
Case style: Rys.AN402
In stock:
10 pcs.
| Quantity of pcs. | 1+ | 5+ | 20+ | 100+ | 300+ |
|---|---|---|---|---|---|
| Net price (EUR) | 2,2737 | 1,8058 | 1,6327 | 1,5439 | 1,5158 |
| Dimensions: | 109x10mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Pipe |
| Type of connector: | Rotated male SMA |
| Cable type: | RG-178 |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product Type: GSM Antenna
Frequency: 824÷960/1710÷2170MHz
Gain: 2.0dBi
Dimensions: L×Φ 109×10mm
Connector Type: SMA male rotating
Polarization: Linear
S.W.R: <=6.0 @ 824÷960MHz
<=4.0 @ 1710÷2170MHz
Impedance: 50Ω
Operating Temperature: -40÷65°C
