AN821 (replacement for: GSM-ANT821)
Symbol Micros:
RF AN821
Case : Rys.AN821

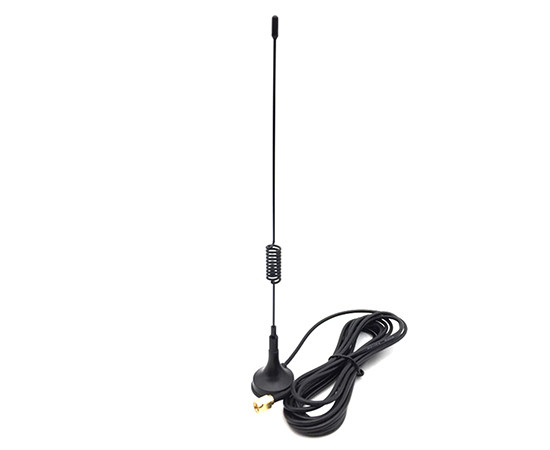

GSM Antenna, 824÷960/1710÷2170MHz, gain 2.0dBi, dimensions L×Φ223×30mm SMA straight male connector, magnet mount, RG174 3m cable
Parameters
| Dimensions: | 223x30mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Rod |
| Mounting: | Magnet |
Manufacturer:: import
Manufacturer part number: AN821 RoHS
Case style: Rys.AN821
In stock:
50 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 50+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 2,6190 | 2,1962 | 1,9530 | 1,8019 | 1,7452 |
| Dimensions: | 223x30mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Rod |
| Mounting: | Magnet |
| Type of connector: | Straight male SMA |
| Cable type: | RG174 |
| Cable length: | 3m |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product Type: GSM Antenna
Frequency: 824÷960MHz/1710÷2170MHz
Gain: 2.0dBi
External Dimensions: L×Φ 223×30mm
Connector Type: SMA Male Straight
Mounting: Magnetic
Cable: RG174 3m
Polarization: Linear
V.S.W.R.: <=3.0
Impedance: 50Ω
Operating Temperature: -40÷65°C
