PD-AN868-5SA (AN176RAM)
Symbol Micros:
RF AN868PD-5sa

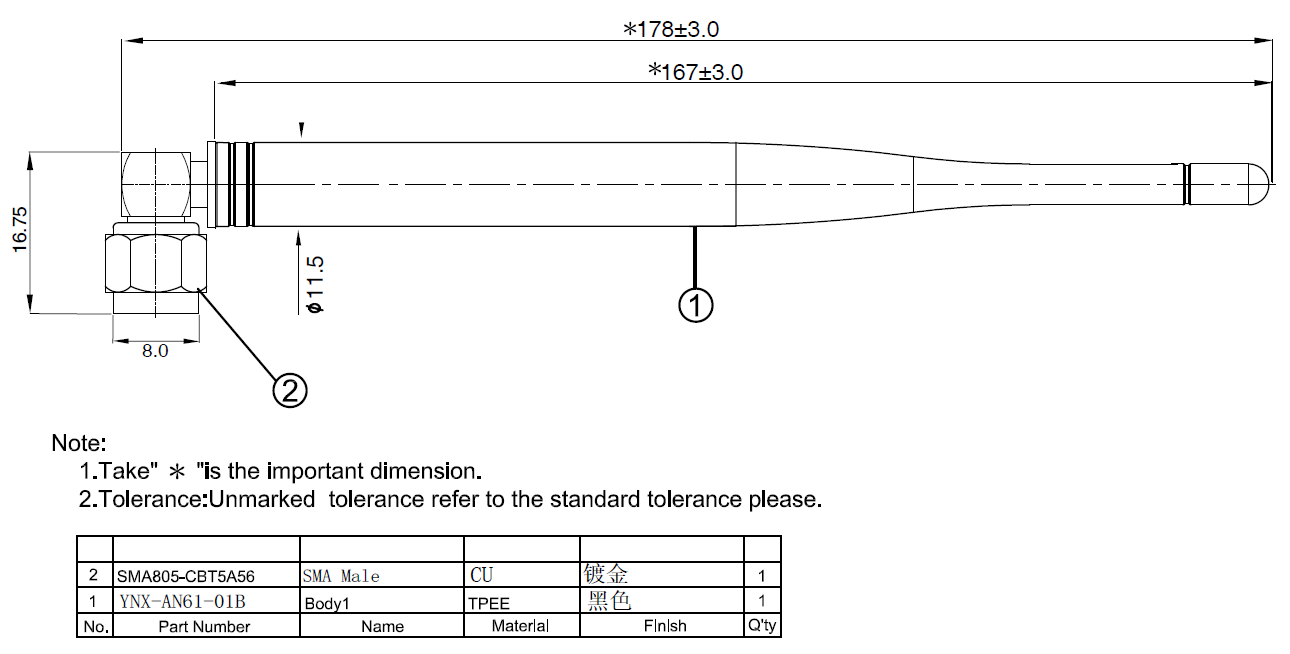

Case : Rys.AN868-5SA

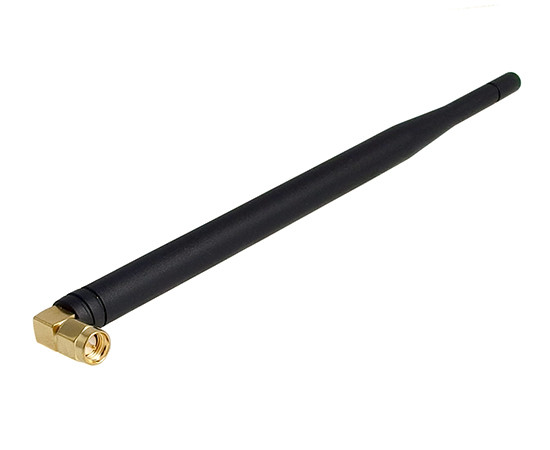

ISM Antenna, Omni-Directional, 868MHz, gain 5dBi, L×Φ 178×11.5mm SMA right angle male connector
Parameters
| Dimensions: | 178x11,5mm |
| Frequency range: | 868MHz |
| Peak gain: | 5,0dBi |
| Antenna type: | ISM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Rod |
| Type of connector: | Angular male SMA |
| Dimensions: | 178x11,5mm |
| Frequency range: | 868MHz |
| Peak gain: | 5,0dBi |
| Antenna type: | ISM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Rod |
| Type of connector: | Angular male SMA |
| Mounting: | Screw |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product type: ISM Antenna 868MHz
Antenna type: omni-directional
Frequency: 868MHz
Gain: 5dBi
Size: L178 × Φ11.5mm
Connector type: SMA male right angle
SWR: <= 3.0
Impedance: 50Ω
Polarization: linear, vertical
Operating temperature: -40÷65°C
