AN155
Symbol Micros:
RF ANGSMST-3rsr
Case : Rys.ANGSM-3R

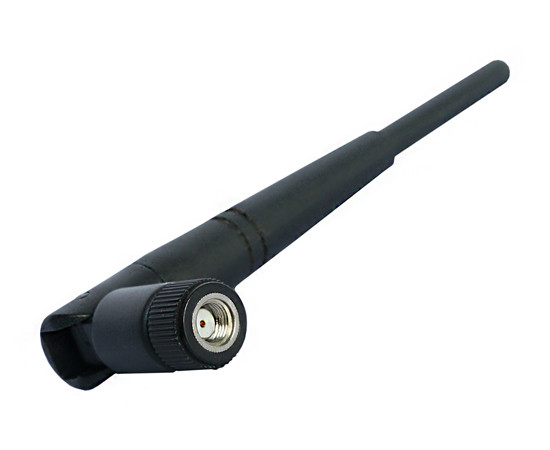

GSM Antenna, Omni-Directional, 900/1800MHz, gain 3dBi, L×Φ 157×13mm RP-SMA rotating male connector
Parameters
| Dimensions: | 157x13mm |
| Frequency range: | 900/1800MHz |
| Peak gain: | 3,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Pipe |
| Mounting: | Screw |
Manufacturer:: import
Manufacturer part number: AN155 RoHS
Case style: Rys.ANGSM-3R
In stock:
25 pcs.
| Quantity of pcs. | 1+ | 5+ | 25+ | 100+ | 300+ |
|---|---|---|---|---|---|
| Net price (EUR) | 2,6147 | 2,0748 | 1,8555 | 1,7754 | 1,7423 |
| Dimensions: | 157x13mm |
| Frequency range: | 900/1800MHz |
| Peak gain: | 3,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 65°C |
| Antenna shape: | Pipe |
| Mounting: | Screw |
| Type of connector: | RP-SMA męskie obracane |
| Polarisation: | Linear |
| Impedance: | 50Ohm |
Detailed description
Product Type: GSM Antenna
Type: Omnidirectional
Frequency: 900/1800MHz
Gain: 3dBi
Dimensions: L157 × Φ13mm
Connector Type: RP-SMA male swivel
SWR: <= 2.0
Impedance: 50Ω
Return Loss: -10dB (max)
Polarization: linear vertical (vertical)
Operating Temperature: -10÷60°C
