ANT1575-1840H

Symbol Micros: RF ANT1575-1840h

276004

RF ANT1575-1840h

Contractor Symbol:

Case : Rys.ANT1575-1840H

Datasheet

Technical drawing Add to favourites

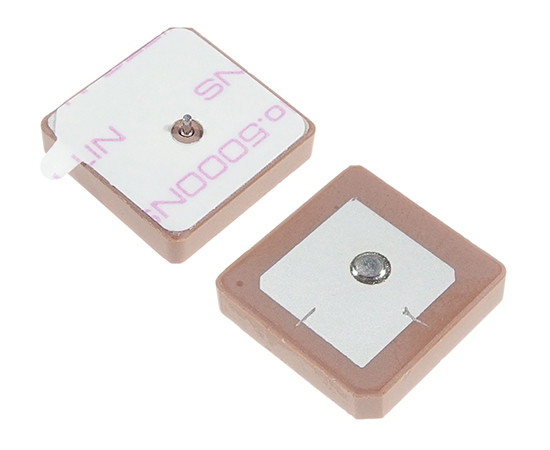

GPS Antenna, 1575.42MHz, BW 10MHz, dimensions 18×18×4mm, adhesive mount

Product description

Parameters

Dimensions:	18x18x4mm
Frequency range:	1575,42MHz
Peak gain:	1,55dBi
Antenna type:	GPS
Operating temperature (range):	-40°C ~ 105°C
Antenna shape:	Square
Mounting:	Adhesive

All parameters

Manufacturer:: import Manufacturer part number: ANT1575-1840H RoHS Case style: Rys.ANT1575-1840H

In stock:

49 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,1535	0,8481	0,6789	0,5826	0,5497

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters
• Description

Dimensions:	18x18x4mm
Frequency range:	1575,42MHz
Peak gain:	1,55dBi
Antenna type:	GPS
Operating temperature (range):	-40°C ~ 105°C
Antenna shape:	Square
Mounting:	Adhesive
Polarisation:	RHCP
Impedance:	50Ohm

Detailed description

Product Type: GPS Antenna

Frequency: 1575.42±3MHz
Bandwidth -10dB (min): 10MHz
External Dimensions: 18×18×4mm
Mounting: adhesive
Polarization: RHCP
V.S.W.R (max): 1.5
Impedance: 50Ω
