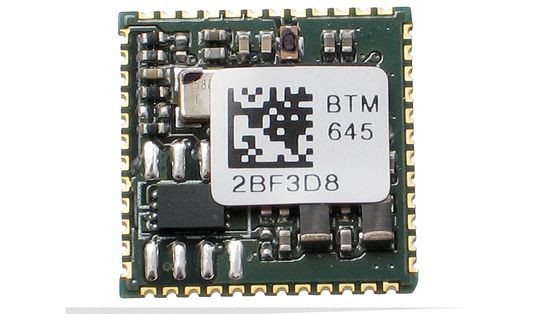

BTM645
Symbol Micros:
RF BTM645
Case : Rys.BTM645
Moduł Bluetooth; 2.4GHz; -85Bm; +/-1 LSB max INL; ISP/SPI/UART; Flash 8MB; 2,7V~4,25V; -40°C~85°C; 13.4 x13.4 x2.7mm;
Parameters
| Dimensions: | 13,4x13,4x2,7mm |
| Interface: | I2C,I2S,SPI,UART |
| Supply voltage: | 2,7V ~ 4,25V |
| Receiver sensivity: | -85dBm |
| Manufacturer: | Rayson |
| Version: | Bluetooth 4.0 Low energy |
| Transmitter output power: | 4dBm |
| Dimensions: | 13,4x13,4x2,7mm |
| Interface: | I2C,I2S,SPI,UART |
| Supply voltage: | 2,7V ~ 4,25V |
| Receiver sensivity: | -85dBm |
| Manufacturer: | Rayson |
| Version: | Bluetooth 4.0 Low energy |
| Transmitter output power: | 4dBm |
| Operating temperature (range): | -40°C ~ 85°C |
| FLASH memory: | 8MB |
| Antenna: | Built-In |
| Mounting: | SMD |
Detailed description
Producent: Rayson
Typ modułu komunikacyjnego: Bluetooth
Napięcie zasilania: 2.7 V ~ 4.25 V
Moc nadajnika: 4dBm
Klasa Bluetooth: 2
Interfejs: UART, USB2.0
Temperatura pracy: -20°C ~ 75°C
