CYRM02-433.92 (rolling code)

Symbol Micros: RF CYRM02-433.92

94479

RF CYRM02-433.92

Contractor Symbol:

Case : Rys.CY-43.0x13.65

Datasheet

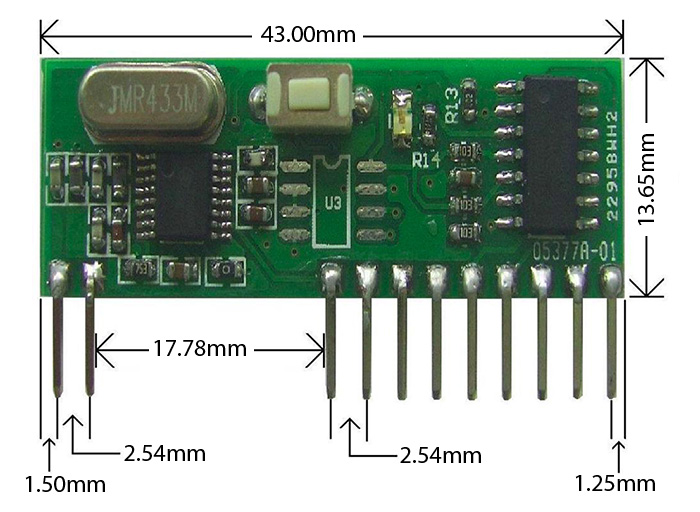

Technical drawing Add to favourites

ASK/OOK Superheterodyne Receiver w/ Decoder 433.92MHz, Si -114dBm, 2.4kbps max, Is 7mA, 3÷5.5V, -40÷85°C, 43×13.65×5.5mm

Parameters

Dimensions:	43x13,65x5,5mm
Supply voltage:	3V~5,5V
Receiver sensivity:	-114dBm
Transmission speed:	2,4kbps
Frequency:	433,92MHz
Modulation:	ASK; OOK
Type:	Receiver

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	43x13,65x5,5mm
Supply voltage:	3V~5,5V
Receiver sensivity:	-114dBm
Transmission speed:	2,4kbps
Frequency:	433,92MHz
Modulation:	ASK; OOK
Type:	Receiver
Operating temperature (range):	-40°C ~ 85°C
Mounting:	DIP
