DA1575S25T4B

Symbol Micros: RF DA1575S25T4b

78355

RF DA1575S25T4b

Contractor Symbol:

Case : DA-25x25x4.0

Datasheet

Add to favourites

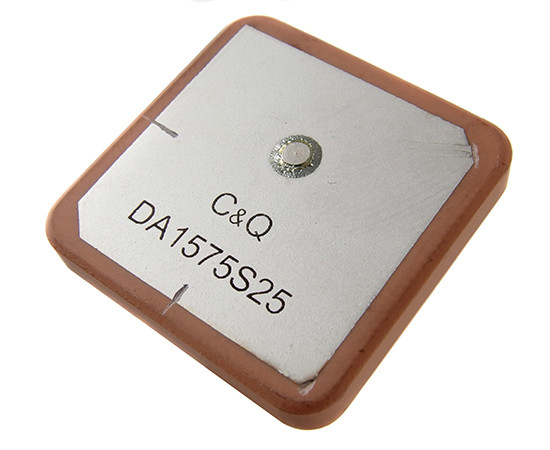

SMD GPS Chip Antenna, 1575.42MHz, gain 4.5dBi, BW 15MHz, dim. 25×25×4.0mm GP 70×70mm

Parameters

Dimensions:	25x25x4,0mm
Frequency range:	1575,42MHz
Peak gain:	4,5dBi
Manufacturer:	CAIQIN
Antenna type:	GPS
Operating temperature (range):	-40°C ~ 105°C
Antenna shape:	Square

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	25x25x4,0mm
Frequency range:	1575,42MHz
Peak gain:	4,5dBi
Manufacturer:	CAIQIN
Antenna type:	GPS
Operating temperature (range):	-40°C ~ 105°C
Antenna shape:	Square
Mounting:	Adhesive
Impedance:	50Ohm
