E01-ML01S EBYTE

Symbol Micros: RF E01-ML01S

295767

RF E01-ML01S

Contractor Symbol:

Case : Rys.EB-19x12x1.63

Datasheet

Technical drawing Add to favourites

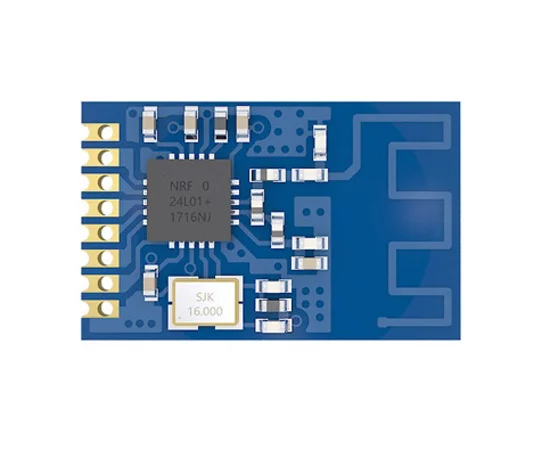

Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; PCB antenna; Po 0dBm; Si -93dBm; 100m; 2V~3,6V; -40°C ~ 85°C; 19x12x1,63mm; SMT 8-pad package;

Parameters

Dimensions:	19x12x1,63mm
Supply voltage:	2V ~ 3,6V
Receiver sensivity:	-93dBm
Frequency:	2,525GHz
Interface:	SPI
Transmission speed:	2Mbps
Modulation:	GFSK

All parameters

Manufacturer:: EBYTE Manufacturer part number: E01-ML01S RoHS Case style: Rys.EB-19x12x1.63 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	20+	100+
Net price (EUR)	2,5565	2,1997	1,9908	1,9180	1,8264

Add to comparison tool Add inquiry (RFQ)

Packaging:
10/20 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	19x12x1,63mm
Supply voltage:	2V ~ 3,6V
Receiver sensivity:	-93dBm
Frequency:	2,525GHz
Interface:	SPI
Transmission speed:	2Mbps
Modulation:	GFSK
Transmitter output power:	0dBm
Operating temperature (range):	-40°C ~ 85°C
Type:	Radio module
Antenna:	PCB
Mounting:	SMD
