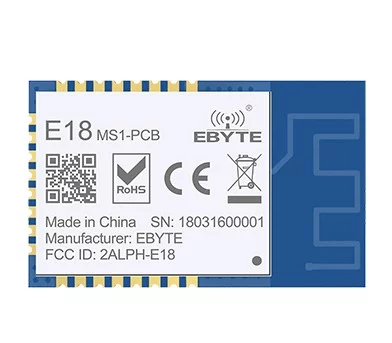

E18-MS1-PCB EBYTE

Symbol Micros: RF E18-MS1-PCB

364185

RF E18-MS1-PCB

Contractor Symbol:

Case : Rys.EB-23x14.1x2.4

Datasheet

Technical drawing Add to favourites

ZigBee module based on the TI CC2530 IC, 2400÷2480Hz, PCB antenna Po 4dBm, Si -96.4dBm, 200m, 2÷3.6V, -40÷85°C, 23×14×2.3mm, SMT 24-pad package

Parameters

Dimensions:	23x14x2,3mm
Receiver sensivity:	-96,4dBm
Antenna:	PCB
FLASH memory:	256kB
Frequency:	2,4MHz
Operating temperature (range):	-40°C ~ 85°C
RAM memory:	8kB

All parameters

Manufacturer:: EBYTE Manufacturer part number: E18-MS1-PCB RoHS Case style: Rys.EB-23x14.1x2.4 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	20+	50+	200+
Net price (EUR)	3,8439	3,3032	3,0931	3,0199	2,9561

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	23x14x2,3mm
Receiver sensivity:	-96,4dBm
Antenna:	PCB
FLASH memory:	256kB
Frequency:	2,4MHz
Operating temperature (range):	-40°C ~ 85°C
RAM memory:	8kB
Supply voltage range:	2V ~ 3,6V
Transmitter power:	4dBm
