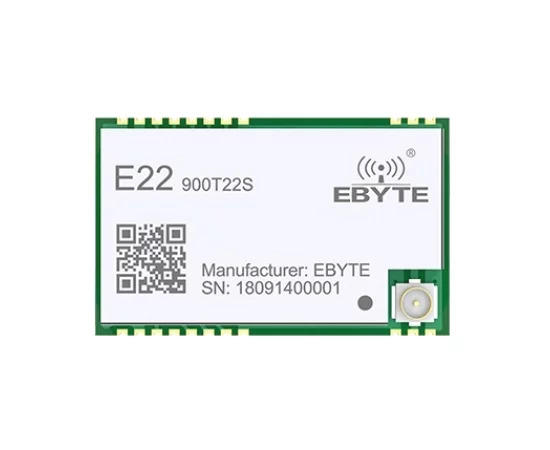

E22-900T22S EBYTE

Symbol Micros: RF E22-900T22S

171727

RF E22-900T22S

Contractor Symbol:

Case : Rys.EB-26x16x3.15

Datasheet

Technical drawing Add to favourites

LoRa module based on the Semtech SX1262 IC, 850.125÷930.125MHz, UART, I-PEX conn Po 22dBm, Si -138dBm, 5000m, 3.3÷5.5V, -40÷85°C, 26×16×3.15mm, SMT 22pad package

Parameters

Supply voltage range:	2,3V ~ 5,5V
Receiver sensivity:	-148dBm
Frequency:	930MHz
Modulation:	FSK, GFSK, LoRa, OOK
Interface:	UART
Transmitter power:	22dBm
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: EBYTE Manufacturer part number: E22-900T22S RoHS Case style: Rys.EB-26x16x3.15 Datasheet

In stock:

4 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	10,0397	9,4001	9,0003	8,8568	8,7298

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	2,3V ~ 5,5V
Receiver sensivity:	-148dBm
Frequency:	930MHz
Modulation:	FSK, GFSK, LoRa, OOK
Interface:	UART
Transmitter power:	22dBm
Operating temperature (range):	-40°C ~ 85°C
Communication module type:	Transceiver
Manufacturer:	EBYTE
