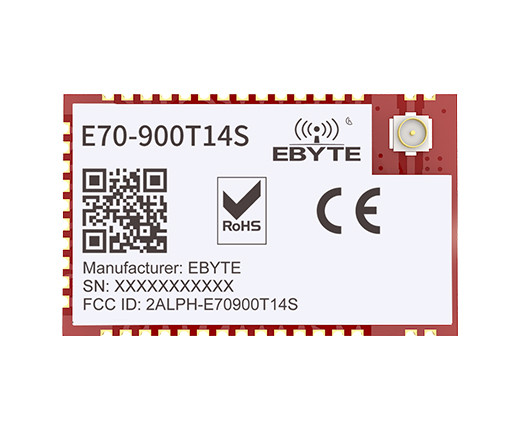

E70-900T14S EBYTE

Symbol Micros: RF E70-900T14S

364211

RF E70-900T14S

Contractor Symbol:

Case : Rys.EB-26x16x2.4

Datasheet

Technical drawing Add to favourites

Wireless module based on the TI CC1310 IC; 861MHz~922,5MHz; UART; I-PEX connector; Po 14dBm; Si -110dBm; 1,5km; 2,2V~3,8V; -40°C ~ 85°C; 26x16x2,4mm; SMT 42-pad package;

Parameters

Dimensions:	26x16x2,4mm
Supply voltage:	2,2V ~ 3,8V
Receiver sensivity:	-110dBm
Frequency:	922,5MHz
Interface:	UART
Transmission speed:	168kbps
Modulation:	GFSK

All parameters

Manufacturer:: EBYTE Manufacturer part number: E70-900T14S RoHS Case style: Rys.EB-26x16x2.4 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	10+	30+	100+
Net price (EUR)	5,4206	4,8618	4,7304	4,5989	4,5168

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	26x16x2,4mm
Supply voltage:	2,2V ~ 3,8V
Receiver sensivity:	-110dBm
Frequency:	922,5MHz
Interface:	UART
Transmission speed:	168kbps
Modulation:	GFSK
Transmitter output power:	14dBm
Operating temperature (range):	-40°C ~ 85°C
Type:	Radio module
Antenna:	External (I-PEX Connector
Mounting:	SMD
