ESP8266 ESP-07S
Symbol Micros:
RF ESP8266 ESP-07S
Case : Rys.ESP-07S
WiFi module; 802.11 b/g/n; 2.4GHz; 72,2Mbps; 3V~3,6V; UART/SPI/I2C/I2S/IRDA/PWM/GPIO; 16x17x3mm; -40°C ~ 85°C;
Parameters
| Dimensions: | 16x17x3mm |
| Interface: | SDIO/SPI/UART/I2C/I2S/IRDA/PWM/GPIO |
| RAM memory: | 36kB |
| Supply voltage: | 3V~3,6V |
| Operating temperature (range): | -20°C ~ 85°C |
| Communication protocol: | 802.11 b/g/n |
| FLASH memory: | 4MB |
| Dimensions: | 16x17x3mm |
| Interface: | SDIO/SPI/UART/I2C/I2S/IRDA/PWM/GPIO |
| RAM memory: | 36kB |
| Supply voltage: | 3V~3,6V |
| Operating temperature (range): | -20°C ~ 85°C |
| Communication protocol: | 802.11 b/g/n |
| FLASH memory: | 4MB |
| Transmission speed: | 72,2Mbps |
| Antenna: | IPEX |
| Frequency: | 2,4GHz |
| Mounting: | SMD |
Detailed description

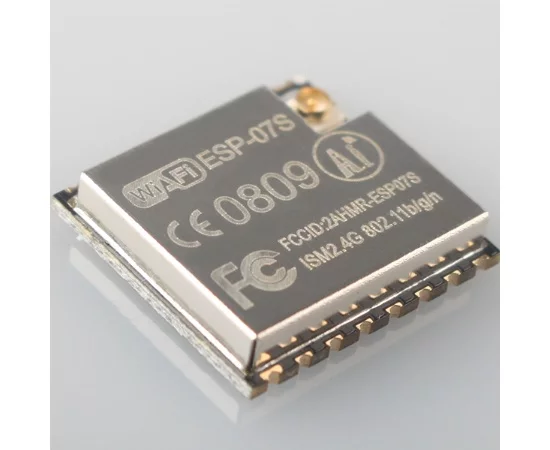

ESP07S is a low-cost and fully functional WiFi module based on the ESP8266 chip. It operates in the 802.11 b/g/n standard on the 2.4 GHz frequency. It is equipped with a U.FL connector for attaching an external antenna. It has 16 pins in a 2 mm pitch:
-
9 × GPIO,
-
1 × ADC,
-
1 × UART bus,
The module also features a built-in indicator LED that shows the module's operational status and a protective screen covering the chip. The external dimensions of the ESP07S are 16 × 21.2 mm. The module supports WPA / WPA2 security protocols and can operate in AP (Access Point), STA (standalone), and AP+STA modes. The ESP07S is suitable for both SMD and THT mounting. Thanks to AT COMMAND support, the microprocessor is very easy to configure.
