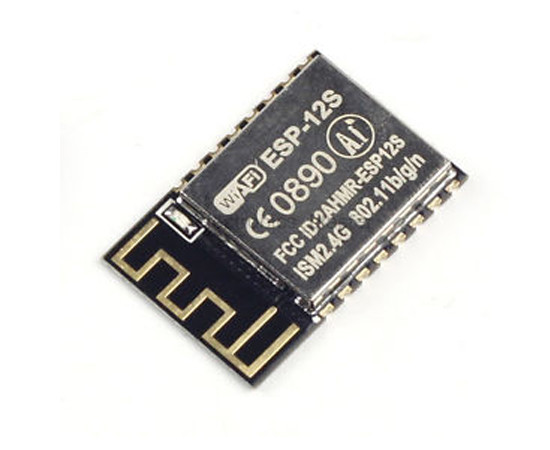

ESP8266 ESP-12S
Symbol Micros:
RF ESP8266 ESP-12S
Case : Rys.ESP-12S
WiFi module; 802.11 b/g/n; 1MB-FLASH; 50kB-SRAM; 2.4GHz; 72,2Mbps; 3V~3,6V; UART/SPI/I2C/I2S/SDIO/GPIO/IRDA/PWM; 16x24x3mm; -40°C ~ 125°C;
Parameters
| Dimensions: | 16x24x3mm |
| Interface: | SDIO/SPI/UART/I2C/I2S/IRDA/PWM/GPIO |
| RAM memory: | 50kB |
| Supply voltage: | 3V~3,6V |
| Operating temperature (range): | -40°C ~ 125°C |
| Communication protocol: | 802.11 b/g/n |
| Transmission speed: | 72,2Mbps |
Manufacturer:: AI-Thinker
Manufacturer part number: ESP-12S RoHS
Case style: Rys.ESP-12S
In stock:
20 pcs.
| Quantity of pcs. | 1+ | 5+ | 20+ | 100+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 3,1379 | 2,5854 | 2,3753 | 2,2643 | 2,2407 |
| Dimensions: | 16x24x3mm |
| Interface: | SDIO/SPI/UART/I2C/I2S/IRDA/PWM/GPIO |
| RAM memory: | 50kB |
| Supply voltage: | 3V~3,6V |
| Operating temperature (range): | -40°C ~ 125°C |
| Communication protocol: | 802.11 b/g/n |
| Transmission speed: | 72,2Mbps |
| FLASH memory: | 1MB |
| Frequency: | 2,4GHz |
| Antenna: | Built-In |
| Mounting: | SMD |
Detailed description
ESP012S is a low-cost and fully functional WiFi module based on the ESP8266 chip. It operates in the 802.11 b/g/n standard on the 2.4 GHz frequency. It is equipped with an internal antenna. It has 16 pins in a 2 mm pitch:
-
9 × GPIO,
-
1 × ADC,
-
1 × UART bus,
The module also features a built-in indicator LED that shows the module's operational status and a protective screen covering the chip. The external dimensions of the ESP12S are 16 × 24 mm. The module supports WPA / WPA2 security protocols and can operate in AP (Access Point), STA (standalone), and AP+STA modes. The ESP12S is dedicated to SMD mounting. Thanks to AT COMMAND support, the microprocessor is easily configurable.
