HF-LPB135-00

Symbol Micros: RF HF-LPB135-00

295992

RF HF-LPB135-00

Contractor Symbol:

Case : Rys.HF-LPB135-00

Datasheet

Technical drawing Add to favourites

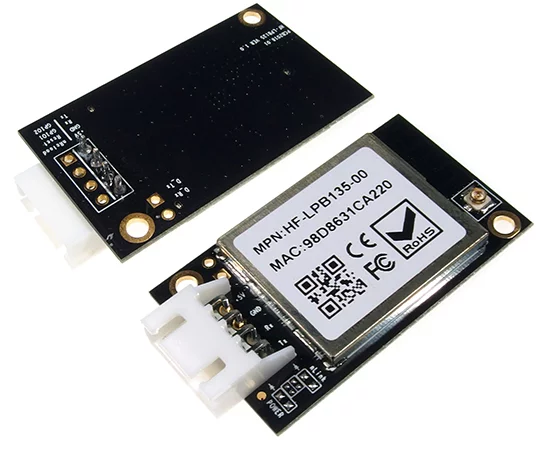

Wi-Fi 2.4G 802.11bgn Module, 2UART/PWM/GPIO, external antenna (I-PEX connector) 5V, 14÷260mA, -40÷85°C, dimensions 41.3×24.1×6mm, 4pin 2.54mm connector

Parameters

Dimensions:	41,3x24,1x6mm
Interface:	2UART/PWM/GPIO
RAM memory:	352kB
Supply voltage:	5V
Operating temperature (range):	-40°C ~ 85°C
Communication protocol:	802.11 b/g/n
Transmission speed:	54Mbps

All parameters

Manufacturer:: HIGH-FLYING Manufacturer part number: HF-LPB135-00 RoHS Case style: Rys.HF-LPB135-00 Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	6,2168	5,7257	5,4258	5,2747	5,1803

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

Manufacturer:: HIGH-FLYING Manufacturer part number: HF-LPB135-00 RoHS Case style: Rys.HF-LPB135-00 Datasheet

In stock:

4 pcs.

Quantity of pcs.	1+	5+	10+	30+	100+
Net price (EUR)	5,5344	4,9630	4,8308	4,6939	4,6112

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	41,3x24,1x6mm
Interface:	2UART/PWM/GPIO
RAM memory:	352kB
Supply voltage:	5V
Operating temperature (range):	-40°C ~ 85°C
Communication protocol:	802.11 b/g/n
Transmission speed:	54Mbps
FLASH memory:	1MB
Frequency:	2,4GHz
Antenna:	IPEX
Mounting:	SMD
