LBEE5KL1DX-883

Symbol Micros: RF LBEE5kl1dx-883

339019

RF LBEE5kl1dx-883

Contractor Symbol:

Case : Rys.LBEE5KL1DX-883

Datasheet

Technical drawing Add to favourites

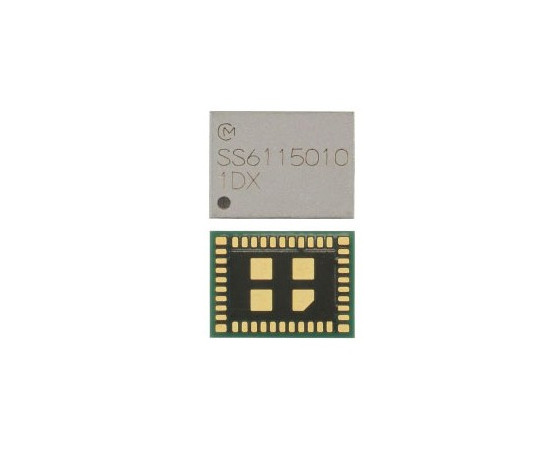

Wi-Fi 802.11bgn + Bluetooth 5.1 BR DR/LE Module based on the CYW4343W IC 3÷4.8V, -30÷70°C, dimensions 6.95×5.15×1.1mm, SMT46 package

Parameters

Dimensions:	6,95x5,15x1,1mm
Interface:	UART
Supply voltage:	3V~4,8V
Operating temperature (range):	-30°C ~ 70°C
Communication protocol:	802.11 b/g/n; Bluetooth 5.1
Transmission speed:	78Mbps
Frequency:	2,4GHz

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-02-13

Quantity of pcs.: 5

• Parameters

Dimensions:	6,95x5,15x1,1mm
Interface:	UART
Supply voltage:	3V~4,8V
Operating temperature (range):	-30°C ~ 70°C
Communication protocol:	802.11 b/g/n; Bluetooth 5.1
Transmission speed:	78Mbps
Frequency:	2,4GHz
Antenna:	None
Mounting:	SMD
