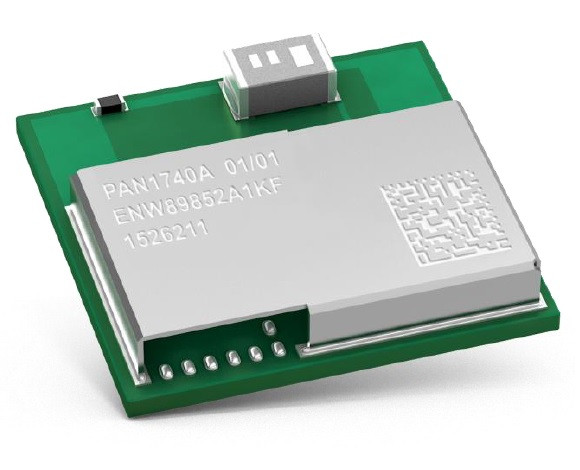

PAN1740A (ENW-89852A1KF)

Symbol Micros: RF PAN1740A

349213

RF PAN1740A

Contractor Symbol:

Case : Rys.PAN1740A

Datasheet

Technical drawing Add to favourites

Bluetooth 5.0 LE Module based on the DIALOG’s DA14585 chip; Built in antenna; Po 0dBm; Si -93dBm; 1,8V~3,3V; -40°C ~ 85°C; 9,5x9x1,8mm;

Parameters

Dimensions:	9,5x9x1,8mm
Interface:	UART/SPI/I2C
Supply voltage:	1,8V~3,3V
Receiver sensivity:	-93dBm
Version:	Bluetooth 5.0 Low energy
Manufacturer:	PANASONIC
Transmitter output power:	0dBm

All parameters

Manufacturer:: Panasonic Manufacturer part number: ENW-89852A1KKF RoHS Case style: Rys.PAN1740A Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	30+
Net price (EUR)	11,9469	10,6721	9,7636	8,9513	8,3550

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	9,5x9x1,8mm
Interface:	UART/SPI/I2C
Supply voltage:	1,8V~3,3V
Receiver sensivity:	-93dBm
Version:	Bluetooth 5.0 Low energy
Manufacturer:	PANASONIC
Transmitter output power:	0dBm
Operating temperature (range):	-40°C ~ 85°C
FLASH memory:	0B
Antenna:	Built-In
Mounting:	SMT
