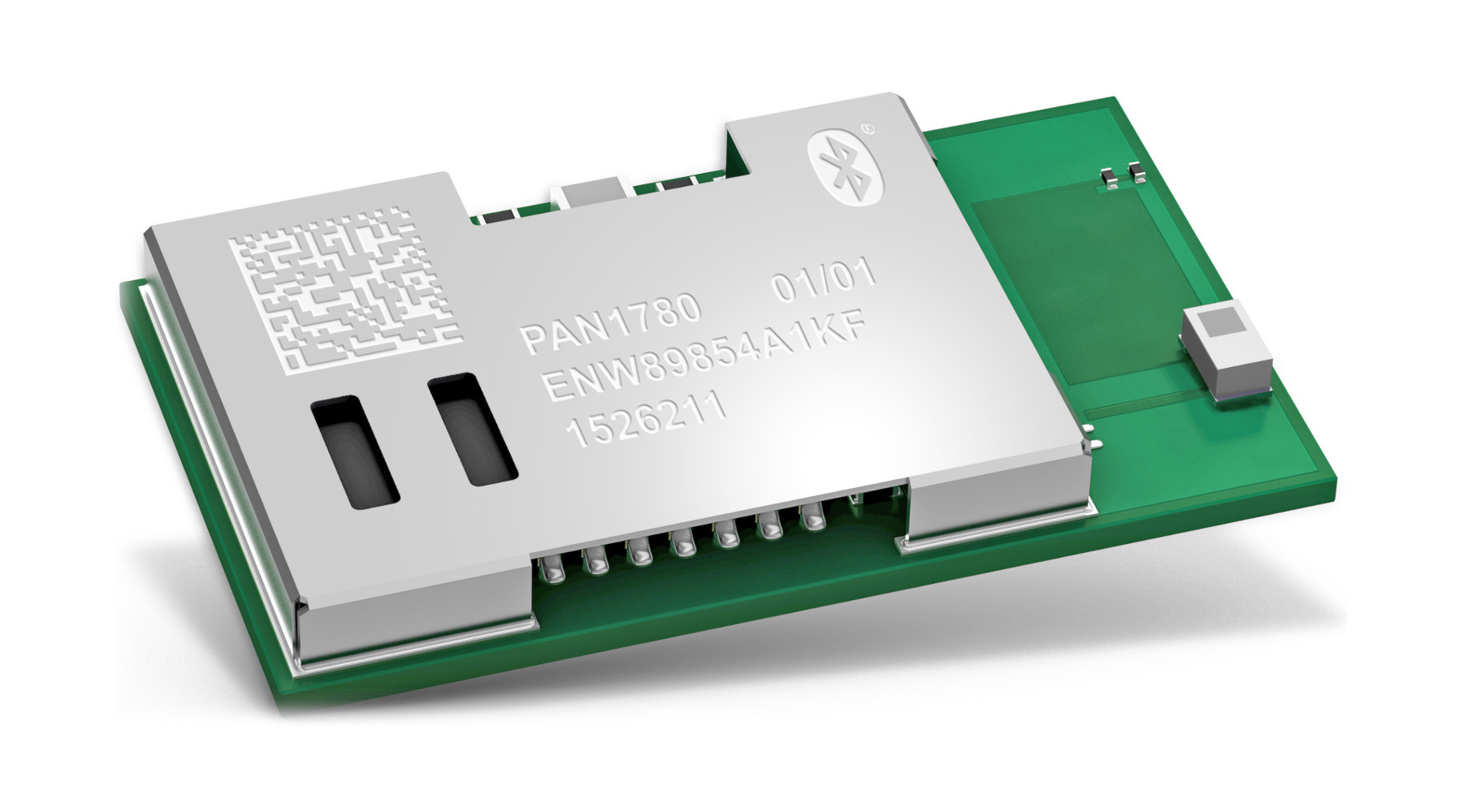

PAN1780 (ENW-89854A1KF)

Symbol Micros: RF PAN1780

351878

RF PAN1780

Contractor Symbol:

Case : Rys.PAN1780

Datasheet

Technical drawing Add to favourites

Bluetooth 5.0 LE Module based on the NORDIC nRF52840; Built-in antenna; Po 8dBm; Si -103dBm; 1,7V~5,5V; -40°C ~ 85°C; 15,6x8,7x2mm;

Parameters

Dimensions:	15,6x8,7x2mm
Interface:	UART/SPI/I2C/USB
Supply voltage:	1,7V~5,5V
Receiver sensivity:	-103dBm
Version:	Bluetooth 5.0 Low energy
Manufacturer:	PANASONIC
Transmitter output power:	8dBm

All parameters

Manufacturer:: Panasonic Manufacturer part number: ENW-89854A1KF RoHS Case style: Rys.PAN1780 Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	13,7005	12,2309	11,1721	10,2120	9,7166

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	15,6x8,7x2mm
Interface:	UART/SPI/I2C/USB
Supply voltage:	1,7V~5,5V
Receiver sensivity:	-103dBm
Version:	Bluetooth 5.0 Low energy
Manufacturer:	PANASONIC
Transmitter output power:	8dBm
Operating temperature (range):	-40°C ~ 85°C
FLASH memory:	0B
Antenna:	Built-In
Mounting:	SMT
