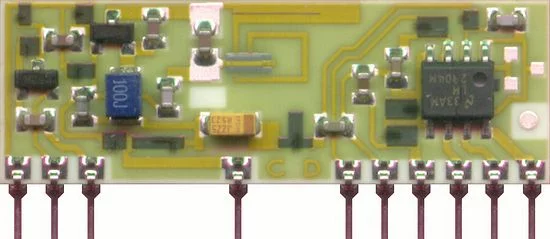

RR3-433.92
Symbol Micros:
RF RR3-433.92
Case : Rys.TC-38.10x12.70
AM Super-regenerative Radio Receiver; 433,92MHz; Si -105dBm; 4,8kbps max; BW +/-2MHz; Is 2,5mA; 4,5V~5,5V; -25°C ~ 80°C;
Parameters
| Dimensions: | 38,1x12,7mm |
| Supply voltage: | 4,5V~5,5V |
| Receiver sensivity: | -105dBm |
| Frequency: | 433,92MHz |
| Transmission speed: | 4,8kbps |
| Modulation: | ASK |
| Operating temperature (range): | -25°C ~ 80°C |
| Dimensions: | 38,1x12,7mm |
| Supply voltage: | 4,5V~5,5V |
| Receiver sensivity: | -105dBm |
| Frequency: | 433,92MHz |
| Transmission speed: | 4,8kbps |
| Modulation: | ASK |
| Operating temperature (range): | -25°C ~ 80°C |
| Type: | Radio receiver |
| Antenna: | None |
| Mounting: | THT |
Detailed description
RR3-433.92 is a cost-effective super-regenerative radio receiver module operating with ASK modulation in the license-free ISM band at a typical frequency of 433.92MHz. The module operates at a supply voltage of 4.5..5.5V, within a temperature range of -25..+80°C, and its current consumption does not exceed 3mA. Thanks to laser-tuned coils, the module exhibits high frequency stability under mechanical vibrations and across a wide temperature range. The RR3 allows data reception at a maximum speed of 4.8kbps and achieves a sensitivity of -105dBm. The product is available in a SIL package with dimensions of 38.1 x 12.7mm.
