W3108

Symbol Micros: RF W3108

145525

RF W3108

Contractor Symbol:

Case : RF ANTxxx

Datasheet

Technical drawing Add to favourites

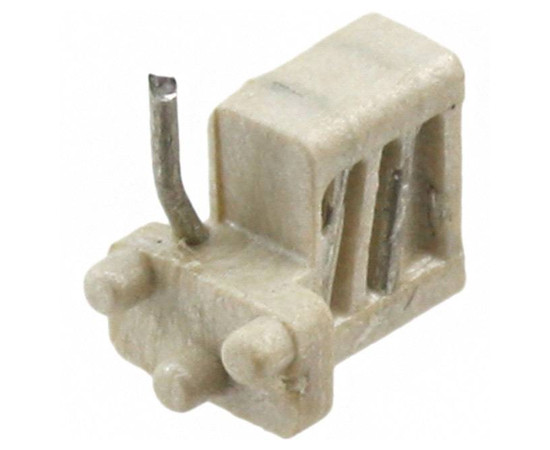

Antenna Helical; 1,5dB Gain; 2483.5MHz; SMD; 50Ohm; -40°C~85°C;

Parameters

Frequency range:	2400MHz ~ 2483.5MHz
Peak gain:	1,5dBi
Manufacturer:	Pulse
Antenna type:	GSM/ISM/GPS/WiFi/Bluetooth
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Rectangle
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Frequency range:	2400MHz ~ 2483.5MHz
Peak gain:	1,5dBi
Manufacturer:	Pulse
Antenna type:	GSM/ISM/GPS/WiFi/Bluetooth
Operating temperature (range):	-40°C ~ 85°C
Antenna shape:	Rectangle
Mounting:	SMD
Impedance:	50Ohm
