W3544B

Symbol Micros: RF W3544B

145521

RF W3544B

Contractor Symbol:

Case : RF ANTxxx

Datasheet

Technical drawing Add to favourites

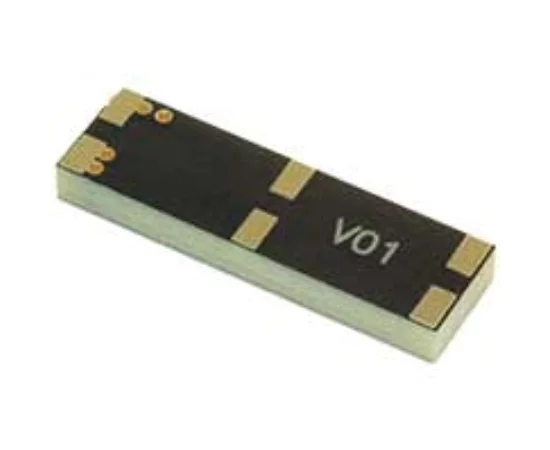

Antenna Penta-Band -1.5dBi/-1.1dBi/-1.1dBi/-1.5dBi Gain 960MHz/1880MHz/1990MHz

Parameters

Dimensions:	9,65x26x3mm
Frequency range:	824-2170MHz
Peak gain:	1,5dBi
Manufacturer:	Pulse
Operating temperature (range):	-45°C ~ 85°C
Mounting:	SMD
Impedance:	50Ohm

All parameters

Manufacturer:: PULSE Manufacturer part number: W3544B RoHS Case style: RF ANTxxx Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,7202	1,2760	1,1153	1,0349	1,0113

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: PULSE Manufacturer part number: W3544B Case style: RF ANTxxx

External warehouse:

1400 pcs.

Quantity of pcs.	140+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,0113

Add to comparison tool Add inquiry (RFQ)

Packaging:
140

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	9,65x26x3mm
Frequency range:	824-2170MHz
Peak gain:	1,5dBi
Manufacturer:	Pulse
Operating temperature (range):	-45°C ~ 85°C
Mounting:	SMD
Impedance:	50Ohm
