W3796

Symbol Micros: RF W3796

145524

RF W3796

Contractor Symbol:

Case : RF ANTxxx

Datasheet

Technical drawing Add to favourites

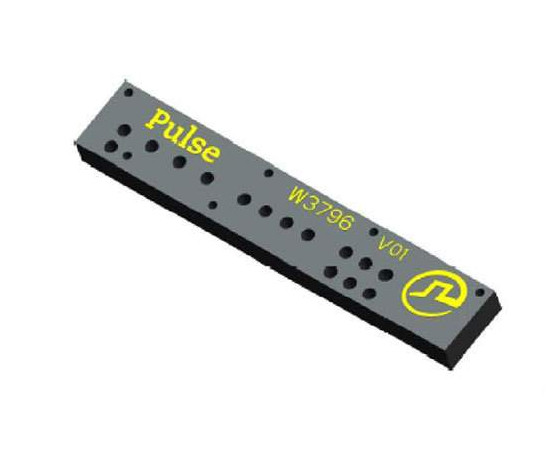

Antenna LTE 5.5dBi Gain 960MHz/1660.5MHz/2200MHz/2700MHz SMD

Parameters

Dimensions:	40x7x3mm
Frequency range:	698-2700MHz
Peak gain:	5,5dBi
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
Impedance:	50Ohm

All parameters

Manufacturer:: PULSE Manufacturer part number: W3796 RoHS Case style: RF ANTxxx Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,1719	2,6222	2,2994	2,1404	2,0468

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: YAGEO Manufacturer part number: W3796 Case style: RF ANTxxx

External warehouse:

8000 pcs.

Quantity of pcs.	1000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,0468

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	40x7x3mm
Frequency range:	698-2700MHz
Peak gain:	5,5dBi
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
Impedance:	50Ohm
