WIZ125SR Ethernet Modules WIZNET
| Dimensions: | 88.5x65.5x18mm |
| Supply voltage range: | 5V |
| Interface: | RS232 |
| Manufacturer: | WIZnet |
| Operating temperature: | 0°C ~ 70°C |
| Downlink transfer: | 230kbps |
| Transmission: | LAN |
| Dimensions: | 88.5x65.5x18mm |
| Supply voltage range: | 5V |
| Interface: | RS232 |
| Manufacturer: | WIZnet |
| Operating temperature: | 0°C ~ 70°C |
| Downlink transfer: | 230kbps |
| Transmission: | LAN |

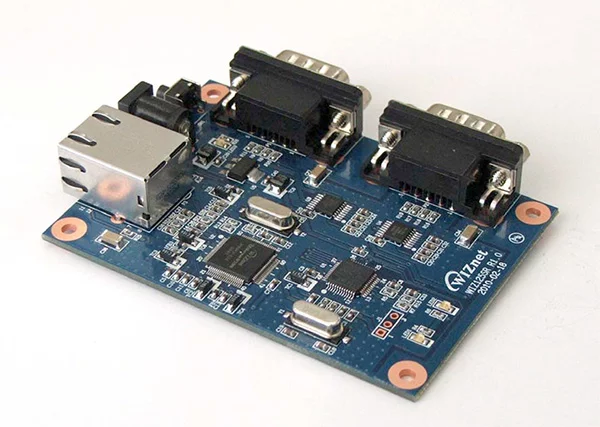

WIZ125SR is an embedded module based on WIZnet W5100 & ARM Cortex-M3. WIZ125SR is the protocol converter that
transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.
Features:
• Serial to Ethernet Module based on W5100 & Cortex-M3
• Serial signals : TXD, RXD, RTS, CTS, GND signals (2 UART/RS-232C)
• 2 DB-9 & RJ-45 mounted
• Support the configuration method of AT command & Configuration tool program
• 10/100Mbps Ethernet & Max.115.2kbps serial speed
• Support WIZ VSP (Virtual Serial Port) program
Hardware Specification:
2 DB-9 for serial & 1 RJ-45 for Ethernet interface
Dimension (mm): 88.5(L) x 65.5 (W) x 18 (H)
Input Voltage: 3.3V
Max. Power Consumption: 220mA
Operation Temperature: 0 ~ 70°C
RoHS, SVHC Compliant
Utilities:
Configuration Tool for Windows
WizVSP: Virtual Serial Port (COM port) for User’s Programs
