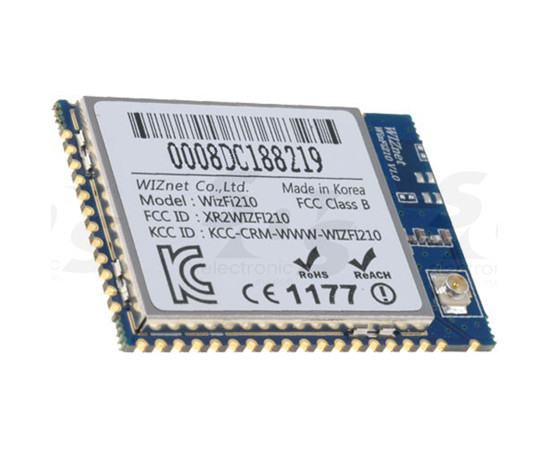

WIZFI210-CA WiFi modules WIZNET
Symbol Micros:
RF WIZFI210-CA
Case : RF WIZFI210-CA
WiFi Module; 802.11b/g/n; 2,4GHz~2,5GHz; 3V~3,6V; -40°C~85°C; 11Mbps; U.FL; UART/SPI1/WAKE/ALARM/GPIO; 32x23,5x3 mm;
Parameters
| Dimensions: | 32x23,5x3 mm |
| Interface: | UART/SPI1/WAKE/ALARM/GPIO |
| Supply voltage: | 3V ~ 3,6V |
| Operating temperature (range): | -40°C ~ 85°C |
| Frequency: | 2,5GHz |
| Transmission speed: | 11Mbps |
| Antenna: | None |
| Dimensions: | 32x23,5x3 mm |
| Interface: | UART/SPI1/WAKE/ALARM/GPIO |
| Supply voltage: | 3V ~ 3,6V |
| Operating temperature (range): | -40°C ~ 85°C |
| Frequency: | 2,5GHz |
| Transmission speed: | 11Mbps |
| Antenna: | None |
| Communication protocol: | 802.11 b/g/n |
| Mounting: | SMD |
Detailed description
- Bring WiFi connectivity via Serial Host Interface
- Quick Booting Time: under 20msec
- Ultra Low Power through Dynamic Power Management (34μA at the Standby mode)
- Operates with standard 802.11b/g/n access point at speed up to11Mbps (802.11b)
- Security Protocol: WEP, WPA/WPA2-PSK, Enterprise, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP
- Operation Temperature : -40°C~85°C
- Compact Size : 32 x 23.5 x 2.9 (mm)
- CE, FCC, KCC Certified
- Supports the module with chip antenna
