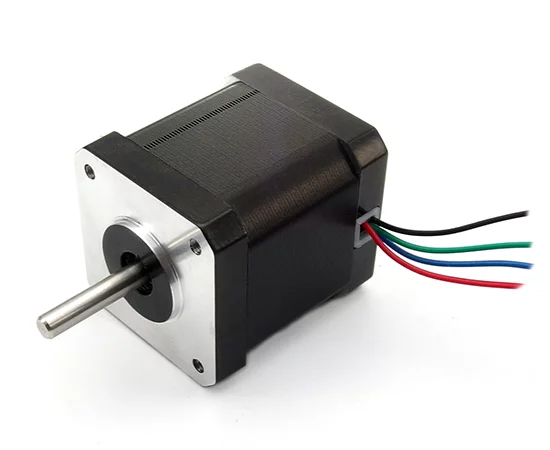

42HM48-1684 Stepper motor

Symbol Micros: SK 42HM48-1684

123109

SK 42HM48-1684

Contractor Symbol:

Case : Rys.42HM48-1684

Datasheet

Technical drawing Add to favourites

Stepper motor; 1,68A; 1,8R; 5mH; 0,9°; length 48mm; flange 42,3mm; no. of leads 4; weight: 0,34kg

Parameters

Current:	1,68A
Flange:	42,3mm
Inductance:	5mH
Lenght:	48mm
Manufacturer:	N/A
Mass:	340g
Motor type:	Stepper motor

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Current:	1,68A
Flange:	42,3mm
Inductance:	5mH
Lenght:	48mm
Manufacturer:	N/A
Mass:	340g
Motor type:	Stepper motor
Number of leads:	4
Resistance:	1,8 Ohm
