LM22676MR-5.0

Symbol Micros: ST22676mr5.0

110957

ST22676mr5.0

Contractor Symbol:

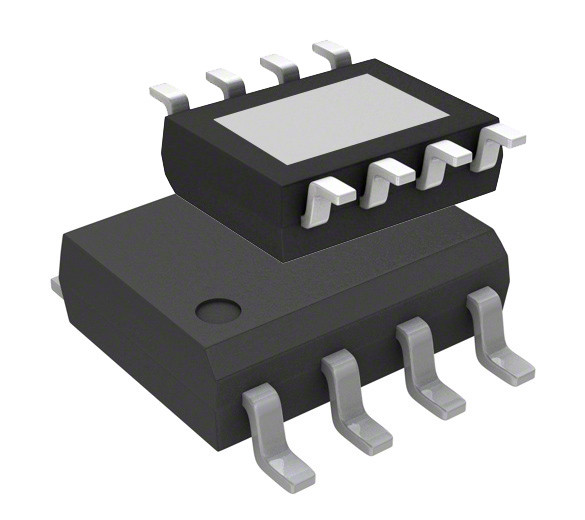

Case : HSOP08

Datasheet

Technical drawing Add to favourites

Step-Down Switching Regulator w/ Prec. EN, 3A, Vin 4.5÷42V, Vout 5V, 500kHz LM22676MR-5.0/NOPB, LM22676MRE-5.0/NOPB, LM22676MRX-5.0/NOPB

Parameters

Case:	HSOP08
Dimensions:	10,41x10,1x2,1mm
Input voltage range:	4,5V~42V
Integrated circuit type:	Switching regulator
Manufacturer:	Texas Instruments
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: LM22676MRX-5.0/NOPB RoHS Case style: HSOP08 Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,7988	2,4173	2,1939	2,0520	1,9985

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Case:	HSOP08
Dimensions:	10,41x10,1x2,1mm
Input voltage range:	4,5V~42V
Integrated circuit type:	Switching regulator
Manufacturer:	Texas Instruments
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C
