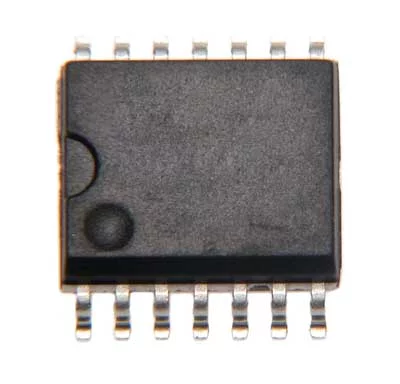

LM2574M-ADJ

Symbol Micros: ST2574madj

11485

ST2574madj

Contractor Symbol:

Case : SOP14W

Datasheet

Technical drawing Add to favourites

Step-Down Switching Regulator, 0.5A, Vin 4÷40V, Vout 1.23÷37V, 52kHz

Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	4V~40V
Mounting:	SMD
Case:	SOP14
Dimensions:	10,16x6,6x5,08mm
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: NSC Manufacturer part number: LM2574MX-ADJ/NOPB RoHS Case style: SOP14Wt/r Datasheet

In stock:

48 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	2,3368	1,8550	1,6772	1,5860	1,5579

Add to comparison tool Add inquiry (RFQ)

Packaging:
300 Quantity (multiple: 1)

- +

Manufacturer:: Texas Instruments Manufacturer part number: LM2574M-ADJ/NOPB Case style: SOP14W

External warehouse:

2090 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,7667

Add to comparison tool Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Texas Instruments
Integrated circuit type:	Switching regulator
Input voltage range:	4V~40V
Mounting:	SMD
Case:	SOP14
Dimensions:	10,16x6,6x5,08mm
Operating temperature (range):	-40°C ~ 125°C
