LM2596S-5.0 P+ JSMICRO

Symbol Micros: ST2596s5.0 JSM
Contractor Symbol:

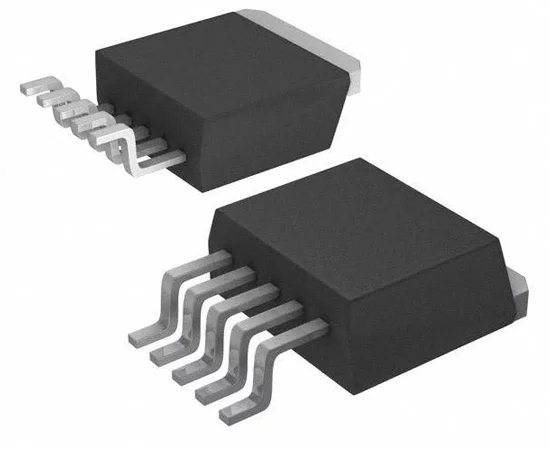

Case : TO263/5
Technical drawing Add to favourites
Step-Down Switching Regulator, 3A, Vin 7÷40V, Vout 5V, 150kHz Replacement for: LM2596S-5.0/NOPB, LM2596SX-5.0/NOPB, TS2596CM550 RNG
Parameters
Case: TO263/5
Dimensions: 14,48x10,33x4,62mm
Input voltage range: 7V~40V
Integrated circuit type: Switching regulator
Manufacturer: JSMICRO
Mounting: SMD
Operating temperature (range): -40°C ~ 125°C
Manufacturer:: JSMicro Semiconductor Manufacturer part number: LM2596S-5.0 P+ RoHS Case style: TO263/5/t/r Datasheet
In stock:
160 pcs.
Quantity of pcs. 1+ 3+ 10+ 40+ 192+
Net price (EUR) 0,8504 0,6239 0,4991 0,4344 0,4044
Add to comparison tool
Packaging:
192
Case: TO263/5
Dimensions: 14,48x10,33x4,62mm
Input voltage range: 7V~40V
Integrated circuit type: Switching regulator
Manufacturer: JSMICRO
Mounting: SMD
Operating temperature (range): -40°C ~ 125°C
