LD29150PTR

Symbol Micros: ST29150ptr

62797

ST29150ptr

Contractor Symbol:

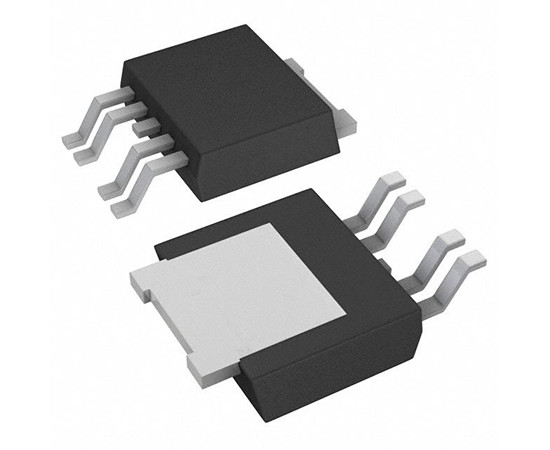

Case : PPAK

Datasheet

Technical drawing Add to favourites

Positive Voltage Regulator, ADJ, 1.5A, 1%, -40÷125°C

Parameters

Input voltage range:	14V
Output current [A]:	1,5A
Output voltage range [V]:	1,23V~13,3V
Tolerance [%]:	1%
Voltage drop:	0,7V
Working temperature range:	-40°C~125°C

All parameters

Manufacturer:: ST Manufacturer part number: LD29150PTR RoHS Case style: PPAK Datasheet

In stock:

55 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,8719	0,5534	0,4348	0,3976	0,3790

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

Manufacturer:: ST Manufacturer part number: LD29150PTR Case style: PPAK

External warehouse:

100000 pcs.

Quantity of pcs.	2500+ (Please wait for the order confirmation)
Net price (EUR)	0,3790

Add to comparison tool Add inquiry (RFQ)

Packaging:
2500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Input voltage range:	14V
Output current [A]:	1,5A
Output voltage range [V]:	1,23V~13,3V
Tolerance [%]:	1%
Voltage drop:	0,7V
Working temperature range:	-40°C~125°C
