LM2940S-5.0/NOPB

Symbol Micros: ST2940s5.0

21348

ST2940s5.0

Contractor Symbol:

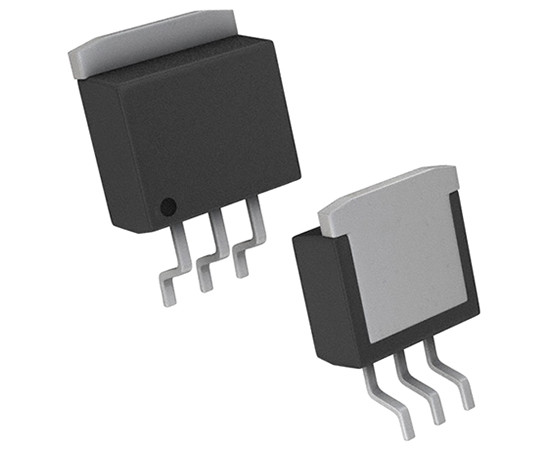

Case : TO263/3

Datasheet

Technical drawing Add to favourites

Positive Voltage Regulator, LDO, 5.0V, 1A, 3%, 0.5V dropout, -40°C~125°C, MIC2940A-5.0WU; MIC2940A-5.0BU; SPX2940T-L-5-0/TR; LM2940SX-5.0/NOPB; LM2940S-5.0; LM2940S-5.0/NOPB; LM2940SX-5.0/NOPB;

Parameters

Output current [A]:	1A
Output voltage [V]:	5V
Tolerance [%]:	3%
Voltage drop:	0,5V
Working temperature range:	-40°C~125°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: LM2940SX-5.0/NOPB RoHS Case style: TO263/3 Datasheet

In stock:

175 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,9412	1,6281	1,4472	1,3359	1,2941

Add to comparison tool Add inquiry (RFQ)

Packaging:
200 Quantity (multiple: 1)

- +

• Parameters

Output current [A]:	1A
Output voltage [V]:	5V
Tolerance [%]:	3%
Voltage drop:	0,5V
Working temperature range:	-40°C~125°C
