MIC29502WT

Symbol Micros: ST29502micwt

51302

ST29502micwt

Contractor Symbol:

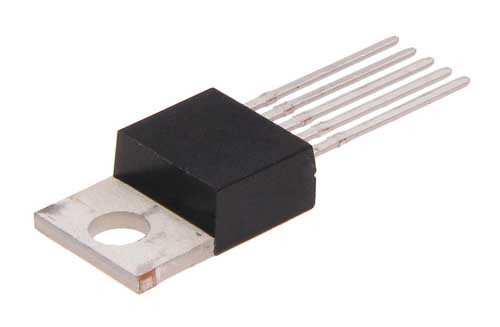

Case : TO220/5

Datasheet

Technical drawing Add to favourites

Positive Voltage Regulator, VLDO, 1.24÷25V, 5A, 1%, 0.37V dropout, -40÷125°C

Parameters

Output voltage range [V]:	1,24V~25V
Working temperature range:	-40°C~125°C
Voltage drop:	0,37V
Output current:	5A
Tolerance:	1%
Input voltage range:	26V

All parameters

Manufacturer:: Micrel Manufacturer part number: MIC29502WT RoHS Case style: TO220/5

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,2423	2,8823	2,6673	2,5597	2,4943

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: Microchip Manufacturer part number: MIC29502WT Case style: TO220/5

External warehouse:

50 pcs.

Quantity of pcs.	50+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	4,8747

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Output voltage range [V]:	1,24V~25V
Working temperature range:	-40°C~125°C
Voltage drop:	0,37V
Output current:	5A
Tolerance:	1%
Input voltage range:	26V
