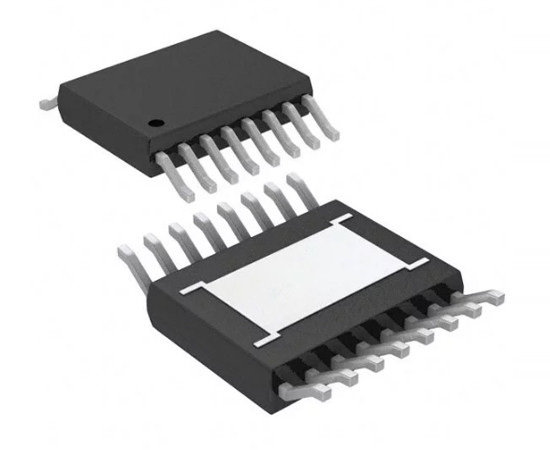

LTC3646EMSE-1 Linear Tech

Symbol Micros: ST3646emse-1

105470

ST3646emse-1

Contractor Symbol:

Case : MSOP16

Datasheet

Technical drawing Add to favourites

Step-Down Switching Reg., Adj, Vin 4÷40V, Vout 0.6÷40V, 3MHz, -40÷150°C

Parameters

Manufacturer:	Linear Technology
Integrated circuit type:	Switching regulator
Input voltage range:	4~40V
Mounting:	SMD
Case:	MSOP16
Dimensions:	4,04x3x0,86mm
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: Linear Technology Manufacturer part number: LTC3646EMSE-1 RoHS Case style: MSOP16 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	5,3553	4,5073	4,0000	3,7463	3,5937

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	Linear Technology
Integrated circuit type:	Switching regulator
Input voltage range:	4~40V
Mounting:	SMD
Case:	MSOP16
Dimensions:	4,04x3x0,86mm
Operating temperature (range):	-40°C ~ 150°C
