LTC7800EUDC

Symbol Micros: ST7800eudc

120981

ST7800eudc

Contractor Symbol:

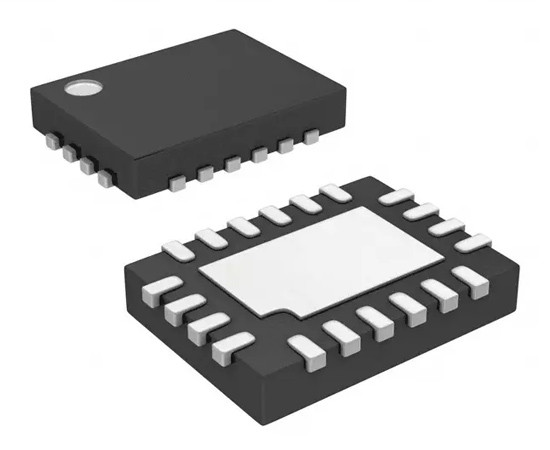

Case : QFN-20S(4x3-0.5)

Datasheet

Technical drawing Add to favourites

Synchronous Step-Down DC-DC Controller, Vin 4.5÷60V, Vout 0.8÷24V, 2.25MHz LTC7800EUDC#PBF, LTC7800EUDC#TRPBF

Parameters

Case:	QFN-20S(4x4-0.5)
Dimensions:	4.0x3.0x0.75mm
Input voltage range:	4.5V ~ 60V
Integrated circuit type:	Switching controllers
Manufacturer:	Linear technology
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: Linear Technology Manufacturer part number: LTC7800EUDC#PBF RoHS Case style: QFN-20S(4x3-0.5) Datasheet

In stock:

4 pcs.

Quantity of pcs.	1+	4+	8+	20+	40+
Net price (EUR)	7,1905	6,6383	6,4733	6,3266	6,2533

Add to comparison tool Add inquiry (RFQ)

Packaging:
4 Quantity (multiple: 1)

- +

• Parameters

Case:	QFN-20S(4x4-0.5)
Dimensions:	4.0x3.0x0.75mm
Input voltage range:	4.5V ~ 60V
Integrated circuit type:	Switching controllers
Manufacturer:	Linear technology
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C
