ADP5052ACPZ-R7

Symbol Micros: STADP5052ACPZ-R7

528539

STADP5052ACPZ-R7

Contractor Symbol:

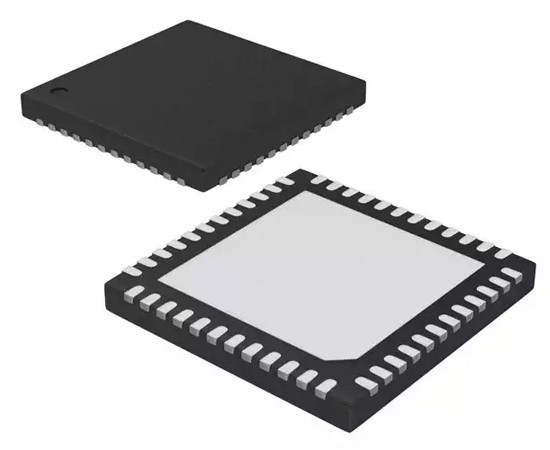

Case : LFCSP48

Datasheet

Technical drawing Add to favourites

5-Channel Integrated Power Solution with Quad Buck Regulators and 200 mA LDO Regulator

Parameters

Case:	LFCSP48
Dimensions:	7,1x7,1x0,75mm
Input voltage range:	4,5V ~ 15V
Integrated circuit type:	Switching regulator
Manufacturer:	ANALOG DEVICES
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Case:	LFCSP48
Dimensions:	7,1x7,1x0,75mm
Input voltage range:	4,5V ~ 15V
Integrated circuit type:	Switching regulator
Manufacturer:	ANALOG DEVICES
Mounting:	SMD
Operating temperature (range):	-40°C ~ 125°C
