NCP115AMX330TCG

Symbol Micros: STNCP115amx330tcg

343494

STNCP115amx330tcg

Contractor Symbol:

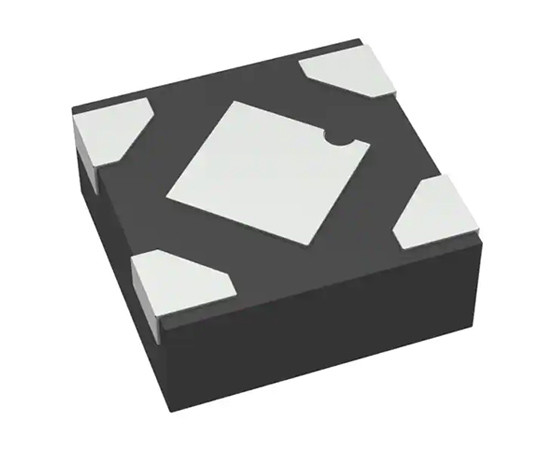

Case : XDFN04(1x1)

Datasheet

Technical drawing Add to favourites

LDO Voltage Regulators; 300mA; Vin 1,7V~5,5V; Vout 3,3V; Output Type: Fixed; 1kHz; -40°C~85°C;

Parameters

Case:	XDFN04(1x1)
Dimensions:	1,0 x 1,0 x 0,33mm
Input voltage range:	1,7V ~ 5,5V
Integrated circuit type:	LDO regulator
Manufacturer:	ON SEMICONDUCTOR
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: ON-Semiconductor Manufacturer part number: NCP115AMX330TCG RoHS Case style: XDFN04(1x1) Datasheet

In stock:

120 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2251	0,1126	0,0672	0,0555	0,0500

Add to comparison tool Add inquiry (RFQ)

Packaging:
300 Quantity (multiple: 1)

- +

• Parameters

Case:	XDFN04(1x1)
Dimensions:	1,0 x 1,0 x 0,33mm
Input voltage range:	1,7V ~ 5,5V
Integrated circuit type:	LDO regulator
Manufacturer:	ON SEMICONDUCTOR
Mounting:	SMD
Operating temperature (range):	-40°C ~ 85°C
